MandelbulbVariationsGenerator

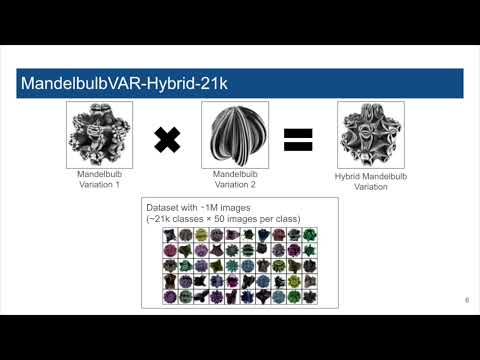

5-min Abstract Video

Overview of this repository

This is the official repository of our work Pre-training Vision Models with Mandelbulb Variations. This repository includes the following files.

• Some samples of our proposed datasets (samples);
• Python scripts to generate the datasets (src), based on OpenGL Shading Language.

How to run

There are two ways to generate the datasets.

• Rye
• Docker

Rye

Setup rye

curl -sSf https://rye-up.com/get | bash

See Rye documentation for more information.

Setup mvg command

cd MandelbulbVariationsGenerator
rye sync

Generate MandelbulbVAR-1k

# Show help
rye run mvg mandelbulbvariations --help
# Minimum working example
rye run mvg mandelbulbvariations --n_per_class 2 --power_min 7 --power_max 8 --rules 488,507 --out out/mandelbulbvariations --width 128 --height 128
# Command to generate the dataset for pre-training
rye run mvg mandelbulbvariations --n_per_class 1000 --power_min 2 --power_max 18 --rules 107,106,263,334,205,271,434,225,331,413,141,167,424,196,222,461,488,109,151,232,42,188,507,32,451,132,190,481,143,96,180,388,397,68,135,197,360,40,465,243,506,160,327,175,105,223,198,332,452,174,281,395,238,386,161,168,204,416,244,418,297 --out out/mandelbulbvariations

Generate MandelbulbVAR-Hybrid-21k

# Show help
rye run mvg hybridmandelbulbvariations --help
# Minimum working example
rye run mvg hybridmandelbulbvariations --n_per_class 2 --power_min 7 --power_max 8 --rules 488,507 --out out/hybridmandelbulbvariations --width 128 --height 128
# Command to generate the dataset for pre-training
rye run mvg hybridmandelbulbvariations --n_per_class 50 --out out/hybridmandelbulbvariations

Generate illustration for hybrid mandelbulb variations (Fig.3)

# Show help
rye run mvg hybridmandelbulbvariationsillustration --help
# Minimum working example
rye run mvg hybridmandelbulbvariationsillustration --width 128 --height 128 --out out/hybridmandelbulbvariationsillustration
# Command to generate the dataset for pre-training
rye run mvg hybridmandelbulbvariationsillustration --width 512 --height 512 --out out/hybridmandelbulbvariationsillustration

Docker

docker build -t mandelbulb_variations_generator:0.0.1 .
docker run -it --gpus all mandelbulb_variations_generator:0.0.1 mvg <some options described above>

Model pre-training

To pre-train CNNs and fine-tune them on supervised classification tasks, one can use the codes released by the authors of FractalDB.

To pre-train and fine-tune ViTs, one can rely on the codes published by the authors of VisualAtom.

Regarding WideResNet-50 pre-training for the anomaly detection task, we suggest one to prepare his/her own training code. Once the pre-trained weight is saved, one can make use of the official codes released by the authors of PatchCore.

Contact

For any inquiries, please create an issue in this repository or send an email to one of the following addresses:

[email protected]

[email protected]

Citation

If you find our work helpful for your resarch or work, please cite our paper:

@InProceedings{Chiche_2024_CVPR,
    author    = {Chiche, Benjamin Naoto and Horikawa, Yuto and Fujita, Ryo},
    title     = {Pre-training Vision Models with Mandelbulb Variations},
    booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
    month     = {June},
    year      = {2024},
    pages     = {22062-22071}
}
