realsense2_camera/examples/align_depth/README.md

@@ -0,0 +1,12 @@
+# Align Depth to Color
+This example shows how to start the camera node and align depth stream to color stream.
+```
+ros2 launch realsense2_camera rs_align_depth_launch.py
+```
+
+The aligned image will be published to the topic "/aligned_depth_to_color/image_raw"
+
+Also, align depth to color can enabled by following cmd:
+```
+ros2 launch realsense2_camera rs_launch.py align_depth.enable:=true"
+```

realsense2_camera/examples/dual_camera/README.md

@@ -0,0 +1,123 @@
+# Launching Dual RS ROS2 nodes
+The following example lanches two RS ROS2 nodes.
+```
+ros2 launch realsense2_camera rs_dual_camera_launch.py serial_no1:=<serial number of the first camera> serial_no2:=<serial number of the second camera>
+```
+
+## Example:
+Let's say the serial numbers of two RS cameras are 207322251310 and 234422060144.
+```
+ros2 launch realsense2_camera rs_dual_camera_launch.py serial_no1:="'207322251310'" serial_no2:="'234422060144'"
+```
+or
+```
+ros2 launch realsense2_camera rs_dual_camera_launch.py serial_no1:=_207322251310 serial_no2:=_234422060144
+```
+
+## How to know the serial number?
+Method 1: Using the rs-enumerate-devices tool
+```
+rs-enumerate-devices | grep "Serial Number"
+```
+
+Method 2: Connect single camera and run
+```
+ros2 launch realsense2_camera rs_launch.py
+```
+and look for the serial number in the log printed to screen under "[INFO][...] Device Serial No:".
+
+# Using Multiple RS camera by launching each in differnet terminals
+Make sure you set a different name and namespace for each camera.
+
+Terminal 1:
+```
+ros2 launch realsense2_camera rs_launch.py serial_no:="'207322251310'" camera_name:='camera1' camera_namespace:='camera1'
+```
+Terminal 2:
+```
+ros2 launch realsense2_camera rs_launch.py serial_no:="'234422060144'" camera_name:='camera2' camera_namespace:='camera2'
+```
+
+# Multiple cameras showing a semi-unified pointcloud
+The D430 series of RealSense cameras use stereo based algorithm to calculate depth. This mean, a couple of cameras can operate on the same scene. For the purpose of this demonstration, let's say 2 cameras can be coupled to look at the same scene from 2 different points of view. See image:
+

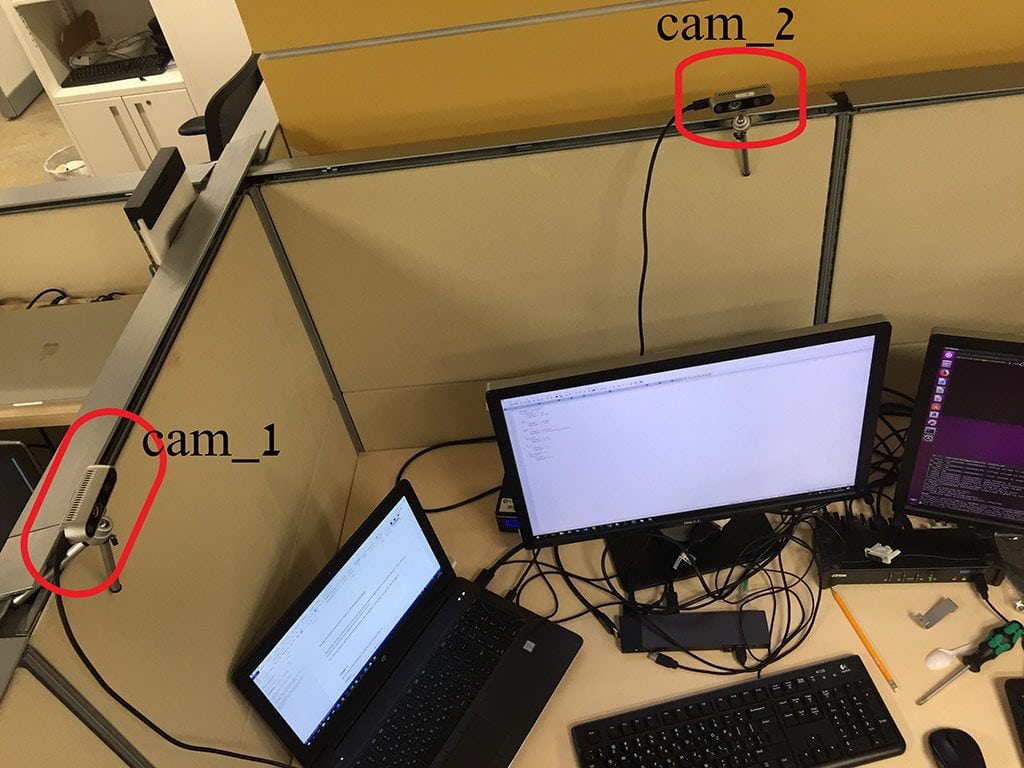

+![multi_cameras](https://user-images.githubusercontent.com/127019120/268692789-1b3d5d8b-a41f-4a97-995d-81d44b4bcacb.jpg)
+
+The schematic settings could be described as:
+X--------------------------------->cam_2
+|&emsp;&emsp;&emsp;&emsp;(70 cm)
+|
+|
+|&ensp;(60 cm)
+|
+|
+/
+cam_1
+
+The cameras have no data regarding their relative position. That’s up to a third party program to set. To simplify things, the coordinate system of cam_1 can be considered as the refernce coordinate system for the whole scene.
+
+The estimated translation of cam_2 from cam_1 is 70(cm) on X-axis and 60(cm) on Y-axis. Also, the estimated yaw angle of cam_2 relative to cam_1 as 90(degrees) clockwise. These are the initial parameters to be set for setting the transformation between the 2 cameras as follows:
+
+```
+ros2 launch realsense2_camera rs_dual_camera_launch.py serial_no1:=_207322251310 serial_no2:=_234422060144 tf.translation.x:=0.7 tf.translation.y:=0.6 tf.translation.z:=0.0 tf.rotation.yaw:=-90.0 tf.rotation.pitch:=0.0 tf.rotation.roll:=0.0
+```
+
+If the unified pointcloud result is not good, follow the below steps to fine-tune the calibaration.
+
+## Visualizing the pointclouds and fine-tune the camera calibration
+Launch 2 cameras in separate terminals:
+
+**Terminal 1:**
+```
+ros2 launch realsense2_camera rs_launch.py serial_no:="'207322251310'" camera_name:='camera1' camera_namespace:='camera1'
+```
+**Terminal 2:**
+```
+ros2 launch realsense2_camera rs_launch.py serial_no:="'234422060144'" camera_name:='camera2' camera_namespace:='camera2'
+```
+**Terminal 3:**
+```
+rviz2
+```
+Open rviz and set '“Fixed Frame'” to “camera1_link”
+Add Pointcloud2-> By topic -> /camera1/camera1/depth/color/points
+Add Pointcloud2 -> By topic -> /camera2/camera2/depth/color/points
+
+**Terminal 4:**
+Run the 'set_cams_transforms.py' tool. It can be used to fine-tune the calibaration.
+```
+python src/realsense-ros/realsense2_camera/scripts/set_cams_transforms.py camera1_link camera2_link 0.7 0.6 0 -90 0 0
+```
+
+**Instructions printed by the tool:**
+```
+Using default file /home/user_name/ros2_ws/src/realsense-ros/realsense2_camera/scripts/_set_cams_info_file.txt
+
+Use given initial values.
+
+Press the following keys to change mode: x, y, z, (a)zimuth, (p)itch, (r)oll
+
+For each mode, press 6 to increase by step and 4 to decrease
+
+Press + to multiply step by 2 or - to divide
+
+Press Q to quit
+```
+
+Note that the tool prints the path of the current configuration file. It saves its last configuration automatically, all the time, to be used on the next run.
+
+After a lot of fiddling around, unified pointcloud looked better with the following calibaration:
+```
+x = 0.75
+y = 0.575
+z = 0
+azimuth = -91.25
+pitch = 0.75
+roll = 0
+```
+
+Now, use the above results in the launch file:
+```
+ros2 launch realsense2_camera rs_dual_camera_launch.py serial_no1:=_207322251310 serial_no2:=_234422060144 tf.translation.x:=0.75 tf.translation.y:=0.575 tf.translation.z:=0.0 tf.rotation.yaw:=-91.25 tf.rotation.pitch:=0.75 tf.rotation.roll:=0.0
+```
+
