每个StorageLevel都会记录是否使用内存或ExternalBlockStore， 如果内存或ExternalBlockStore内存不足，是否将RDD丢弃到磁盘， 是否以串行化格式保存内存中的数据以及是否在多个节点上复制RDD分区。
class StorageLevel private(
private var _useDisk: Boolean,//磁盘
private var _useMemory: Boolean,//内存
private var _useOffHeap: Boolean,//堆外内存
private var _deserialized: Boolean,//是否序列化
private var _replication: Int = 1)//副本数量根据StorageLevel类定义以下级别:
NONE,DISK_ONLY,DISK_ONLY_2,MEMORY_ONLY = new Sto
MEMORY_ONLY_2,MEMORY_ONLY_SER,MEMORY_ONLY_SER_2,MEMORY_AND_DISK,
MEMORY_AND_DISK_2,MEMORY_AND_DISK_SER,MEMORY_AND_DISK_SER_2,
OFF_HEAP(与MEMORY_ONLY_SER类似，但将数据存储在堆外存储器中)
Reserved Memory: spark 运行时driver或executor jvm进程消耗的内存
User(Other) Memory: 可以保存用户自己数据,比如mapPartitions用户用来聚合数据
Storage Memory: 包括broadcast数据,rdd中cache数据
Execution Memory: spark core运行task时使用,在shuffle时map中sort/aggregation时需要缓存部分数据,缓存不足溢出磁盘
Unroll:
正如看到那样,迭代器数据cache到内存,这里使用数内存就是Unroll Memory,如果内存不足又不能溢出磁盘,则不能缓
存直接返回,下次使用的时候只能重新计算
-
StaticMemoryManager 这种静态分配导致storage与execution对内存利用不是很充分 storage memory: 54% 预留: 6% unroller memory: 10.8% storage memory: 43.2% execution memory: 16% 预留: 4% other: 20%
private def getMaxStorageMemory(conf: SparkConf): Long = { val systemMaxMemory = conf.getLong("spark.testing.memory", Runtime.getRuntime.maxMemory) val memoryFraction = conf.getDouble("spark.storage.memoryFraction", 0.6) val safetyFraction = conf.getDouble("spark.storage.safetyFraction", 0.9) (systemMaxMemory * memoryFraction * safetyFraction).toLong } private def getMaxExecutionMemory(conf: SparkConf): Long = { val systemMaxMemory = conf.getLong("spark.testing.memory", Runtime.getRuntime.maxMemory) val memoryFraction = conf.getDouble("spark.shuffle.memoryFraction", 0.2) val safetyFraction = conf.getDouble("spark.shuffle.safetyFraction", 0.8) (systemMaxMemory * memoryFraction * safetyFraction).toLong } private val maxUnrollMemory: Long = { (maxStorageMemory * conf.getDouble("spark.storage.unrollFraction", 0.2)).toLong }
-
UnifiedMemoryManager 预留300M,JVM至少450M,MaxMemory=(JVM-300M)*75%,还有25%other,默认storage占MaxMemory的50%,storage与execution 可以根据需要在对方空余的情况下占用空余的内存
private def getMaxMemory(conf: SparkConf): Long = { val systemMemory = conf.getLong("spark.testing.memory", Runtime.getRuntime.maxMemory) val reservedMemory = conf.getLong("spark.testing.reservedMemory", if (conf.contains("spark.testing")) 0 else RESERVED_SYSTEM_MEMORY_BYTES) val minSystemMemory = reservedMemory * 1.5 if (systemMemory < minSystemMemory) { throw new IllegalArgumentException(s"System memory $systemMemory must " + s"be at least $minSystemMemory. Please use a larger heap size.") } val usableMemory = systemMemory - reservedMemory val memoryFraction = conf.getDouble("spark.memory.fraction", 0.75) (usableMemory * memoryFraction).toLong }

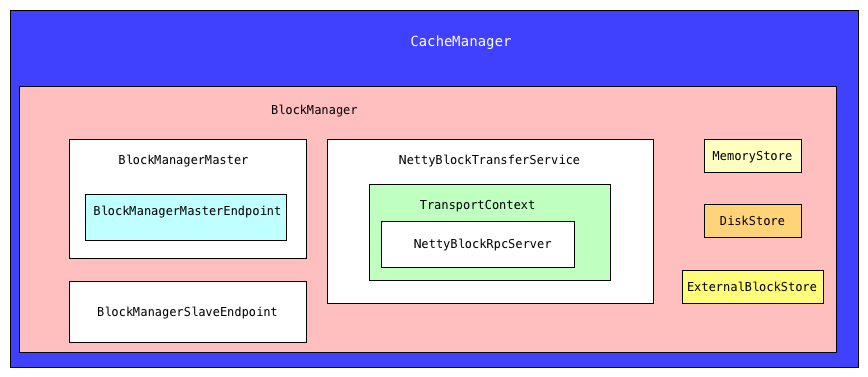

CacheManager: Spark类负责将RDD分区内容传递给BlockManager，并确保节点不会一次加载RDD的两个副本。 通过CacheManager获取数据,如果不存在,计算结果并保存BlockManager: driver和executors个节点都会管理该模块,决定数据保存/获取媒介是内存,磁盘,堆外内存MemoryStore: 负责将数据写入内存或者从内存读出DiskStore: 负责将数据写入磁盘或者从磁盘读出ExternalBlockStore: 负责将数据写入堆外或者从堆外读出BlockManagerMasterEndpoint: BlockManagerMasterEndpoint是Driver端ThreadSafeRpcEndpoint， 用于跟踪所有BlockManager的状态。BlockManagerMaster: 对于driver是一个master RPC服务, 对于executors,是RPC clientBlockManagerSlaveEndpoint: RpcEndpoint从主服务器获取命令以执行选项。 例如，这用于从executors的BlockManager中删除块。NettyBlockTransferService: BlockTransferService使用Netty一远程获取blocks。NettyBlockRpcServer: 处理opening和uploading任意的BlockManager块。
SparkEnv.create CacheManager创建过程
val blockTransferService = new NettyBlockTransferService(conf, securityManager, numUsableCores)
val blockManagerMaster = new BlockManagerMaster(registerOrLookupEndpoint(
BlockManagerMaster.DRIVER_ENDPOINT_NAME,
new BlockManagerMasterEndpoint(rpcEnv, isLocal, conf, listenerBus)),
conf, isDriver)
// NB: blockManager is not valid until initialize() is called later.
val blockManager = new BlockManager(executorId, rpcEnv, blockManagerMaster,
serializer, conf, memoryManager, mapOutputTracker, shuffleManager,
blockTransferService, securityManager, numUsableCores)
val broadcastManager = new BroadcastManager(isDriver, conf, securityManager)
val cacheManager = new CacheManager(blockManager)在Driver创建RPC server,executor创建RPC client
def registerOrLookupEndpoint(
name: String, endpointCreator: => RpcEndpoint):
RpcEndpointRef = {
if (isDriver) {
logInfo("Registering " + name)
rpcEnv.setupEndpoint(name, endpointCreator)
} else {
RpcUtils.makeDriverRef(name, conf, rpcEnv)
}
}driver:
SparkContext: _env.blockManager.initialize(_applicationId)
executor:
Executor: env.blockManager.initialize(conf.getAppId)
上面分析了内存充足情况下,副本>1的情况
- RDD.iterator为入口,[spark core源码阅读-Task介绍(六)]详细说过ShuffleMapTask/ResultTask, task调用
runTask, 该方法会调用iterator storageLevel != StorageLevel.NONE调用SparkEnv.get.cacheManager.getOrCompute,当blockManager没有缓存该数据集,RDD.computeOrReadCheckpoint计算RDD的一个分区数据,调用putInBlockManagercache该数据- 优先写入MemoryStore,如果内存不足,将最近使用次数不频繁的数据写入磁盘
- 通知
BlockManagerMaster,updateBlockInfo保存元数据 - 如果备份数目>1,调用
replicate,将已经写入的数据同步到其他节点上
这里先分析IO没有容错情况
def get(blockId: BlockId): Option[BlockResult] = {
val local = getLocal(blockId)
if (local.isDefined) {
logInfo(s"Found block $blockId locally")
return local
}
val remote = getRemote(blockId)
if (remote.isDefined) {
logInfo(s"Found block $blockId remotely")
return remote
}
None
}getRemote触发2次RPC
client.sendRpc注册一个ManagedBuffers流- 成功之后
client.fetchChunk(这里只有一个block)
1.NettyBlockTransferService.fetchBlocks,执行成功回调函数BlockFetchingListener.onBlockFetchSuccess
//BlockTransferService.fetchBlockSync
def fetchBlockSync(host: String, port: Int, execId: String, blockId: String): ManagedBuffer = {
// A monitor for the thread to wait on.
val result = Promise[ManagedBuffer]()
fetchBlocks(host, port, execId, Array(blockId),
new BlockFetchingListener {
override def onBlockFetchFailure(blockId: String, exception: Throwable): Unit = {
result.failure(exception)
}
override def onBlockFetchSuccess(blockId: String, data: ManagedBuffer): Unit = {
val ret = ByteBuffer.allocate(data.size.toInt)
ret.put(data.nioByteBuffer())
ret.flip()
result.success(new NioManagedBuffer(ret))
}
})
Await.result(result.future, Duration.Inf)
}2.OneForOneBlockFetcher.start开始获取进程,this.openMessage = new OpenBlocks(appId, execId, blockIds);
调用成功后,第二次发起第二次RPC请求client.fetchChunk
client.sendRpc(openMessage.toByteBuffer(), new RpcResponseCallback() {
@Override
public void onSuccess(ByteBuffer response) {
try {
streamHandle = (StreamHandle) BlockTransferMessage.Decoder.fromByteBuffer(response);
logger.trace("Successfully opened blocks {}, preparing to fetch chunks.", streamHandle);
// Immediately request all chunks -- we expect that the total size of the request is
// reasonable due to higher level chunking in [[ShuffleBlockFetcherIterator]].
for (int i = 0; i < streamHandle.numChunks; i++) {
client.fetchChunk(streamHandle.streamId, i, chunkCallback);
}
} catch (Exception e) {
logger.error("Failed while starting block fetches after success", e);
failRemainingBlocks(blockIds, e);
}
}
@Override
public void onFailure(Throwable e) {
logger.error("Failed while starting block fetches", e);
failRemainingBlocks(blockIds, e);
}
});3.第二次调用成功后触发TransportResponseHandler.handle,然后执行回调函数ChunkCallback
if (message instanceof ChunkFetchSuccess) {
ChunkFetchSuccess resp = (ChunkFetchSuccess) message;
ChunkReceivedCallback listener = outstandingFetches.get(resp.streamChunkId);
if (listener == null) {
logger.warn("Ignoring response for block {} from {} since it is not outstanding",
resp.streamChunkId, remoteAddress);
resp.body().release();
} else {
outstandingFetches.remove(resp.streamChunkId);
listener.onSuccess(resp.streamChunkId.chunkIndex, resp.body());
resp.body().release();
}
}1.响应第一次Client的请求OpenBlocks事件,NettyBlockRpcServer.receive,
OneForOneStreamManager注册一个ManagedBuffers流,作为单独的块一次一个地推给调用者
override def receive(
client: TransportClient,
rpcMessage: ByteBuffer,
responseContext: RpcResponseCallback): Unit = {
val message = BlockTransferMessage.Decoder.fromByteBuffer(rpcMessage)
logTrace(s"Received request: $message")
message match {
case openBlocks: OpenBlocks =>
val blocks: Seq[ManagedBuffer] =
openBlocks.blockIds.map(BlockId.apply).map(blockManager.getBlockData)
//OneForOneStreamManager 注册一个ManagedBuffers流，作为单独的块一次一个地推给调用者
val streamId = streamManager.registerStream(appId, blocks.iterator.asJava)
logTrace(s"Registered streamId $streamId with ${blocks.size} buffers")
responseContext.onSuccess(new StreamHandle(streamId, blocks.size).toByteBuffer)
case uploadBlock: UploadBlock =>
// StorageLevel is serialized as bytes using our JavaSerializer.
val level: StorageLevel =
serializer.newInstance().deserialize(ByteBuffer.wrap(uploadBlock.metadata))
val data = new NioManagedBuffer(ByteBuffer.wrap(uploadBlock.blockData))
blockManager.putBlockData(BlockId(uploadBlock.blockId), data, level)
responseContext.onSuccess(ByteBuffer.allocate(0))
}
}2.送回Client端的第二次RPC请求,TransportRequestHandler.handle执行processFetchRequest,
OneForOneStreamManager.getChunk, 为响应fetchChunk()请求,封装ManagedBuffer返回
private void processFetchRequest(final ChunkFetchRequest req) {
final String client = NettyUtils.getRemoteAddress(channel);
logger.trace("Received req from {} to fetch block {}", client, req.streamChunkId);
ManagedBuffer buf;
try {
streamManager.checkAuthorization(reverseClient, req.streamChunkId.streamId);
streamManager.registerChannel(channel, req.streamChunkId.streamId);
buf = streamManager.getChunk(req.streamChunkId.streamId, req.streamChunkId.chunkIndex);
} catch (Exception e) {
logger.error(String.format(
"Error opening block %s for request from %s", req.streamChunkId, client), e);
respond(new ChunkFetchFailure(req.streamChunkId, Throwables.getStackTraceAsString(e)));
return;
}
respond(new ChunkFetchSuccess(req.streamChunkId, buf));
}IO容错为实际fetcher封装在类RetryingBlockFetcher中
