| Version | Date | Author | Description / Change Notes | Affected Sections |
|---|---|---|---|---|
| 1.0 | 2024-12-31 | Amedeo Pelliccia, ChatGPT, Copilot, Gemini, Perplexity AI, Mermaid AI | Creation of the consolidated Equipment & Furnishing document, integrating advanced technologies (AI, Quantum Cybersecurity, Predictive Maintenance, etc.) | All |
Below is the updated and integrated Table of Contents, reflecting both existing sections and newly proposed enhancements—covering sustainability, circular economy, cybersecurity, advanced accessibility, and AI-driven cabin management.
-
25.10 Introduction
(Historical context and evolving significance of ATA 25 in ensuring passenger safety, comfort, and operational efficiency.) -
25.20 Scope and Objectives
(Defines the range of equipment under ATA 25 and highlights goals: safety, comfort, sustainability, compliance.) -
25.30 Regulatory Requirements
(Details relevant FAA/EASA regulations, flammability tests, occupant protection standards, certification processes, and emerging considerations like AI and cybersecurity.) -
25.46 Advanced Cabin Systems and Technologies
- 25.46.1 Cabin Safety Innovations
- 25.46.2 Cabin Security Systems
- 25.46.3 Advanced Cabin Technologies (non-safety/security)

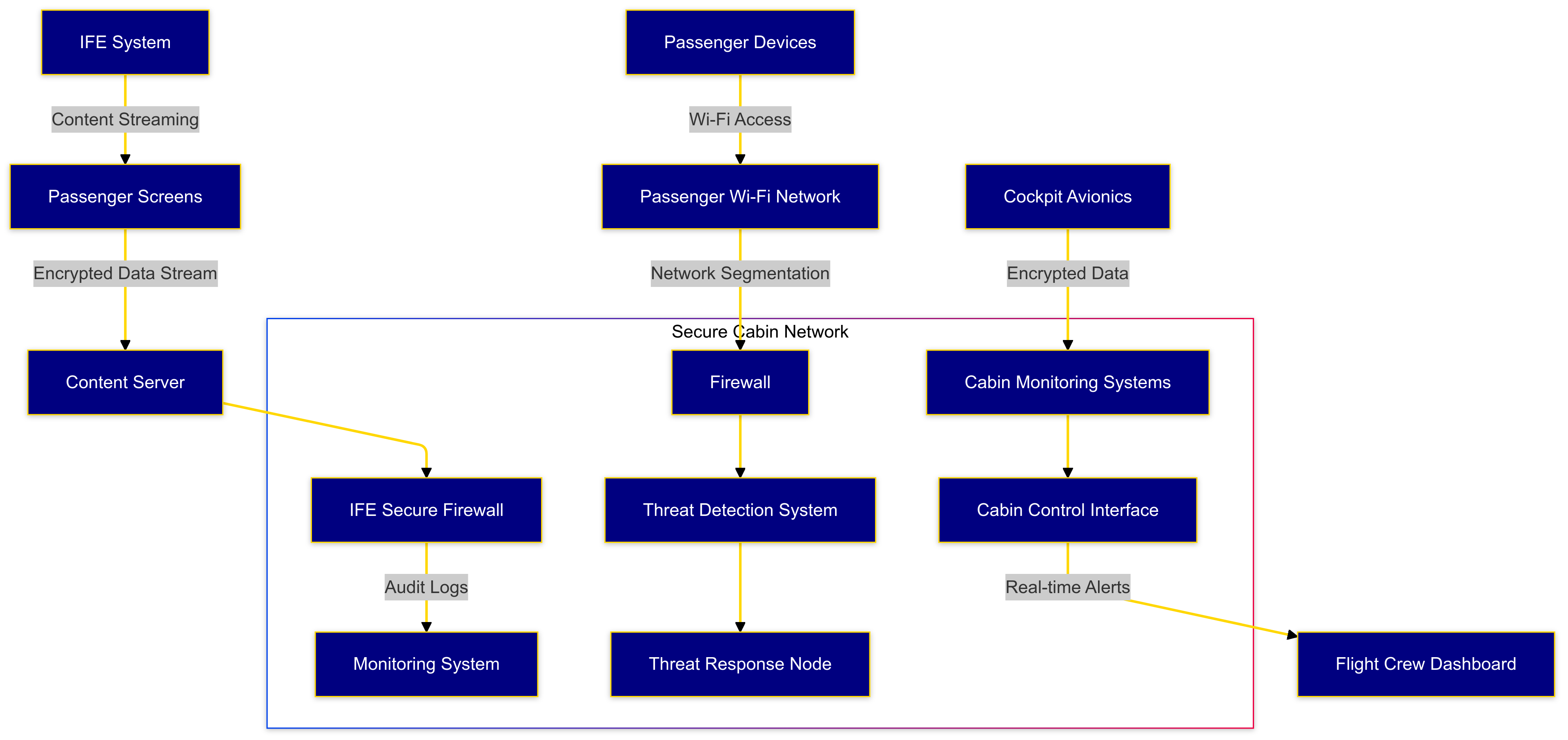

- 25.46.4 Cabin Cybersecurity
(New: Addresses aviation cybersecurity frameworks like DO-326A, potential cabin-network threats, secure software updates, and incident response.)
-
25.60 Environmental Considerations
- 25.61 Material Flammability and Toxicity
- 25.62 Noise Reduction and Acoustic Treatments
- 25.63 Thermal Insulation and Energy Efficiency
- 25.64 Sustainable Cabin Retrofitting
(New: Processes/technologies for upgrading older interiors to eco-friendly standards, minimizing downtime and maximizing ROI.) - 25.65 Carbon Footprint Analysis of Cabin Furnishings
(New: Methods for life-cycle assessment, emissions tracking from manufacturing to end-of-life.) - 25.66 Sustainable Materials
-
25.70 In-Flight Entertainment (IFE) and Cabin Systems
- 25.71 IFE Hardware and Software
- 25.72 Connectivity and Power Outlets
- 25.73 Lighting and Mood Systems
- 25.74 In-Flight Connectivity (IFC) Systems
(Aligned with ATA 24 references for electrical power management.)
-
25.75 Passenger Health and Well-being
- 25.75.1 Air Quality and Filtration
- 25.75.2 Humidity Control Systems
- 25.75.3 Biophilic Design Elements
- 25.75.4 Cabin Pressure and Effects

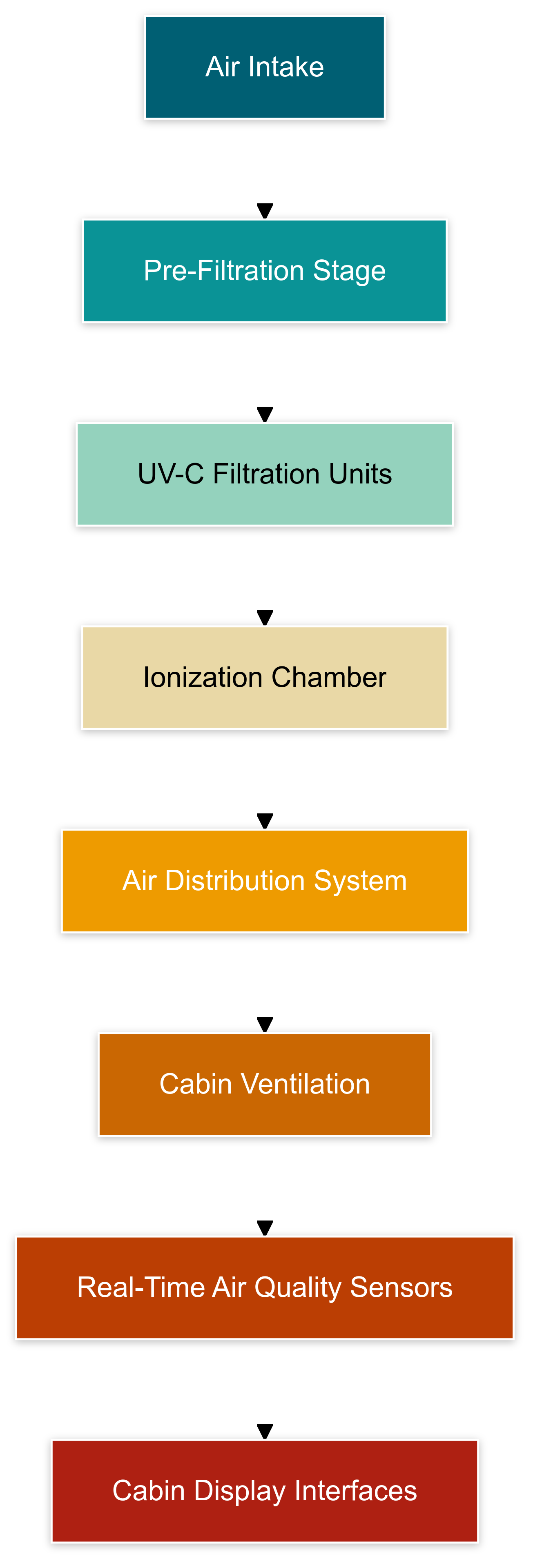

- 25.75.5 Advanced Air Purification Technologies
(New: Next-gen filtration/ionization/UV-C methods for contamination-free cabin air; real-time sensor monitoring.) - 25.75.6 Specific Air Purification Technologies (PCO, Bipolar Ionization)
-
25.93 Accessibility and Inclusivity
- 25.93.1 Universal Cabin Design Principles
- 25.93.2 PRM (Persons with Reduced Mobility) Enhancements
- 25.93.3 Adaptive Technologies for PRM
(New: Smart wheelchairs, haptic feedback, customizable seating, universal design for diverse passenger needs.) - 25.93.4 Assistive Robotics for PRM
-

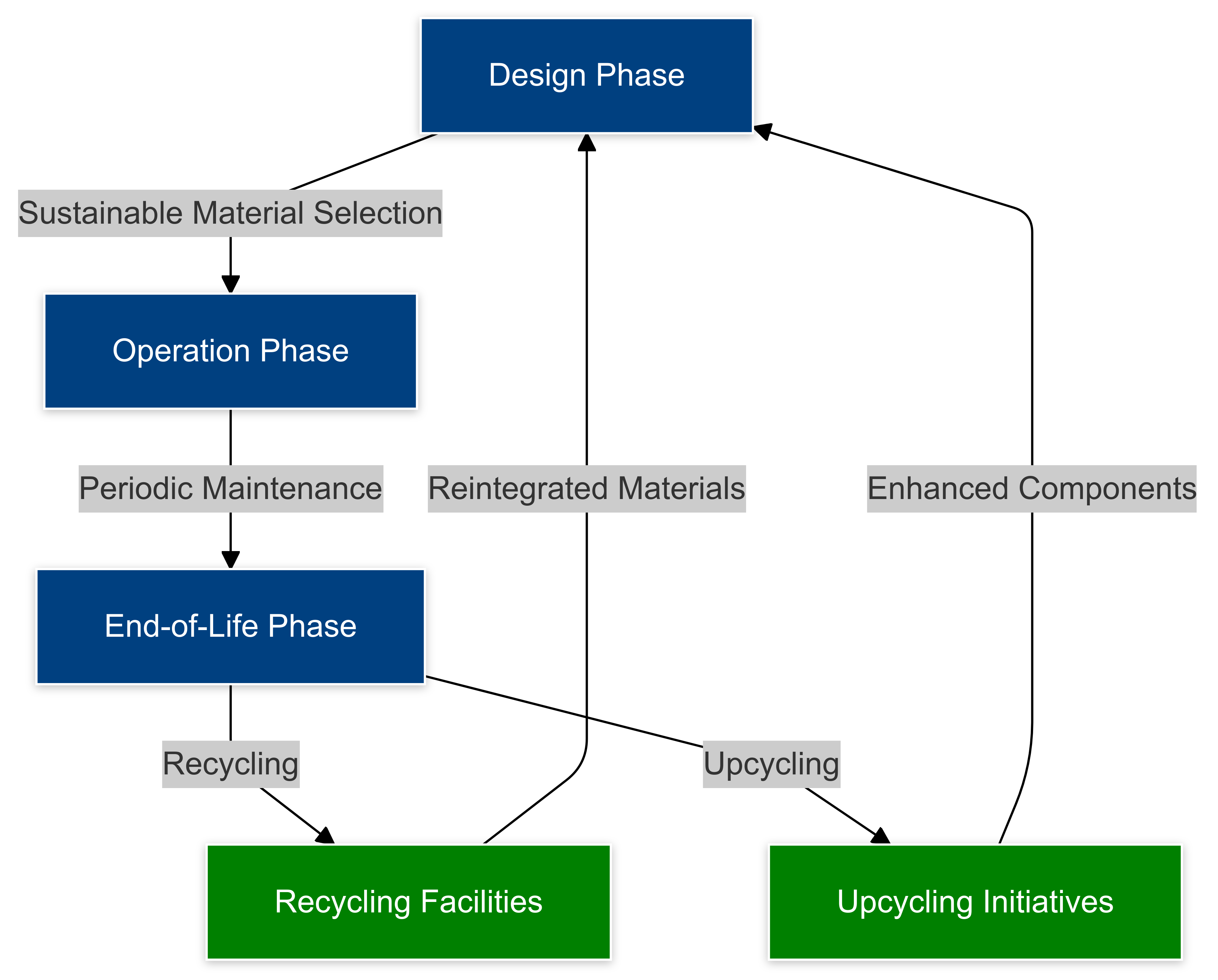

25.145 Circular Economy and Lifecycle Management
(New: End-of-life recycling programs, upcycling retired components, supplier ecosystem for sustainable materials.)
- 25.145.1 Cabin Material Recycling Processes
- 25.145.2 Upcycling Retired Cabin Components
- 25.145.3 Supplier Ecosystem for Sustainable Components
25.145.4 Partnerships for Circular Economy in Aircraft Interiors(Removed invalid URL)
- 25.150.1 Emergency Recovery of Cabin Systems
- 25.150.2 Redundant Design for Critical Cabin Equipment
- 25.150.3 Disaster Response Scenarios (Fire, Decompression, System Failure)

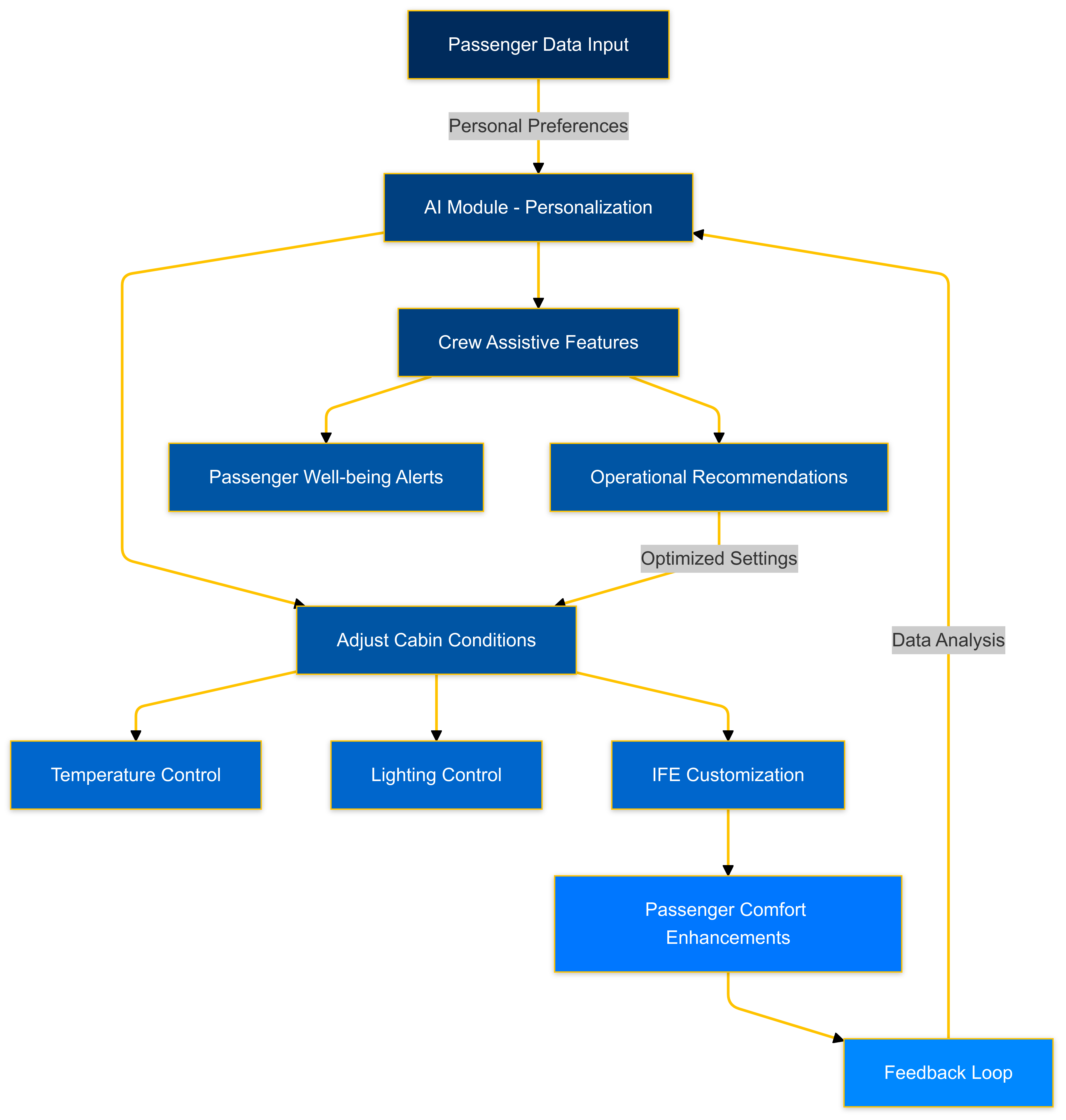

- 25.160.1 Passenger Experience Optimization
- 25.160.2 Crew Assistive Technologies
- 25.160.3 AI-Based Passenger Comfort Monitoring
25.160.4 Ethical Considerations of AI in Cabin Management(Removed invalid URL)
- 25.170.1 Smart Surfaces and Materials (Self-Healing, Adaptive Textures)
- 25.170.2 Bio-Inspired Cabin Layouts for Efficiency
- 25.170.3 Integration of Biophilic Design Elements
25.170.4 Smart Textiles in Cabin Seating and Surfaces(Removed invalid URL)

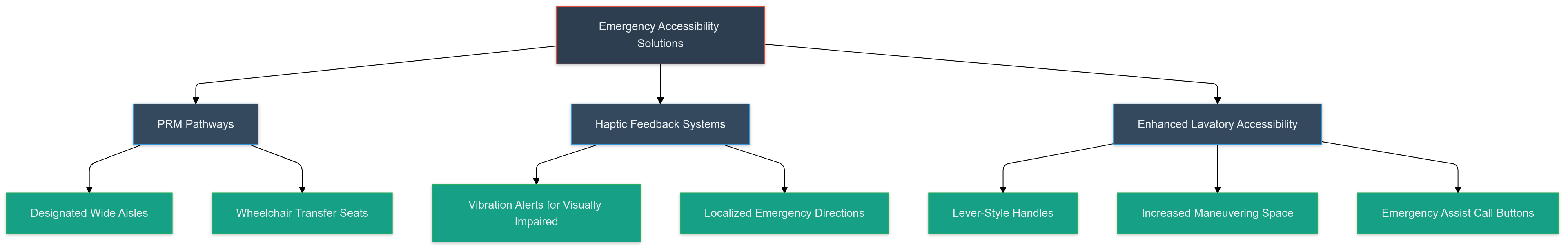

- 25.180.1 Universal Accessibility During Emergency Evacuations
- 25.180.2 Enhancing PRM (Persons with Reduced Mobility) Safety
- 25.180.3 Designing for Diverse Passenger Needs
25.180.4 Innovative Evacuation Aids for PRM(Removed invalid URL)
- ATA 24: Align sections on power management for IFE, connectivity, and advanced cabin systems with relevant subsections (e.g., 25.70 In-Flight Entertainment, 25.46.4 Cabin Cybersecurity).
- ATA 26: Reference for fire suppression integration in lavatories and galleys (Section 25.44).
Historical context and evolving significance of ATA 25 in ensuring passenger safety, comfort, and operational efficiency.
Historical Context ATA Chapter 25 - Equipment and Furnishings has evolved significantly over time to address the changing needs of aircraft interiors, passenger comfort, and safety requirements. Originally part of the Air Transport Association's standard numbering system for aircraft documentation, ATA 25 has become a critical reference for manufacturers, airlines, and maintenance organizations. It helps in categorizing and managing aircraft interior systems, contributing to the overall safety, efficiency, and passenger experience in modern aircraft.
Scope and Significance ATA 25 encompasses a wide range of components and systems essential for aircraft interiors, including:
- Flight deck and passenger compartment furnishings
- Emergency equipment
- Galley and lavatory systems
- Cargo handling systems
- Insulation and interior panels
The importance of ATA 25 has grown due to:
- Increased focus on passenger comfort and amenities
- Evolving safety regulations and emergency preparedness requirements
- Advancements in materials and technologies used in aircraft interiors
Key Areas of Focus
-
Safety and Compliance
- Ensures aircraft meet stringent safety standards, including:
- Fire protection and flammability requirements for interior materials
- Proper placement and functionality of emergency equipment
- Crashworthiness of seats and other furnishings
- Ensures aircraft meet stringent safety standards, including:
-
Passenger Experience
- Addresses elements that directly impact passenger comfort:
- Seat design and configuration
- In-flight entertainment systems
- Lighting and environmental control
- Addresses elements that directly impact passenger comfort:
-
Operational Efficiency
- Covers systems that affect aircraft operations:
- Galley equipment for efficient food service
- Cargo handling systems for quick turnarounds
- Modular designs for easy reconfiguration and maintenance
- Covers systems that affect aircraft operations:
As aircraft design and passenger expectations continue to evolve, ATA 25 remains a critical framework for ensuring that equipment and furnishings meet the highest standards of safety, comfort, and efficiency in modern aviation.
- What are the key components covered under ATA Chapter 25?
- How does ATA Chapter 25 contribute to passenger safety?
- What are the main differences between wet and dry galleys in aircraft?
- How often are the components listed in ATA Chapter 25 inspected or maintained?
- What role do avionics compartments play in ensuring operational efficiency?
This detailed introduction provides a comprehensive overview of the historical context, scope, significance, and key areas of focus within ATA Chapter 25. It highlights the chapter's critical role in enhancing aircraft interiors, passenger comfort, safety, and operational efficiency. How does this look to you?
(Define the scope of equipment and accessories covered under ATA 25, along with the primary objectives—safety, comfort, regulatory compliance, etc.)
ATA Chapter 25 encompasses a wide array of equipment and furnishings essential for aircraft safety, comfort, and operational efficiency. These elements range from basic fittings to sophisticated systems, each playing a critical role in the overall functionality and safety of the aircraft. Key cabin interior elements covered under ATA 25 include:
-
Seating Systems
- Crashworthiness Standards: Seats must meet stringent safety requirements to absorb impact forces during emergencies, ensuring passenger protection.
- Ergonomic Comfort: Adjustable seat features and flammability-compliant materials enhance passenger well-being.
- Space Optimization: Slimline designs and staggered configurations balance maximum capacity with comfort.
-
Cabin Interior Structures
- Partitions, Sidewalls, Floor/Ceiling Panels, Overhead Bins: Provide thermal/acoustic insulation, aesthetic appeal, and load resistance.
- Maintenance Accessibility: Designed for quick access to underlying systems with minimal disassembly.
- Fire Safety Standards: Materials must comply with flammability and smoke-toxicity regulations.
-
Galleys and Lavatories
- Food Service Equipment: Ovens, chillers, and coffee makers mounted for safety, with easy-to-clean surfaces.
- Lavatory Fixtures: Waste and water systems sealed to prevent leaks.
- Hygiene & Functionality: Must meet both passenger comfort and regulatory standards.
-
Emergency Equipment
- Life Rafts, Life Vests, Fire Extinguishers, Oxygen Systems: Proper stowage, labeling, and periodic checks for immediate availability.
- Escape Slides: Integrated into cabin doors or wing exits, tested for rapid deployment.
- Compliance: Must meet requirements outlined in FAR/CS 25 for quantity, accessibility, and signage.
-
Cargo Handling Systems
- Restraint Nets & Barriers: Secure cargo to prevent shifting during flight or impact scenarios.
- Tie-Down Points: Designed to withstand specified g-forces, ensuring cargo remains in place.
- Loading Equipment: Specialized solutions for freight carriers or combi-aircraft.
-
In-Flight Entertainment and Connectivity
- Seatback Screens, Audio-Video Systems, Power Outlets: Enhance passenger experience with reliable wiring, shielding, and testing.
- Wi-Fi Systems: Must comply with electromagnetic interference (EMI) standards and data security protocols.
- Crew-Controlled Diagnostics: Allow quick resets or software updates during flight.
-
Crew Rest Compartments
- Dedicated Flight Crew Bunks: Address fatigue management for long-haul operations.
- Access and Egress Requirements: Must meet emergency escape regulations and minimal disruption to passenger areas.
- Ventilation and Lighting: Provide comfortable sleeping/rest conditions for crew.
-
Accessibility Equipment
- Wheelchair-Accessible Lavatories: Expanded space, assist bars, and specialized doors.
- PRM (Persons with Reduced Mobility) Seating: Additional legroom, easy-to-reach call buttons.
- Secure Restraints: For specialized equipment or support devices needed by passengers with limited mobility.
The primary objectives under ATA 25 are:
-
Safety
- Ensuring all cabin equipment (seats, bins, emergency gear) meets airworthiness standards (FAR/CS 25) for flammability, crashworthiness, and occupant protection.
- Providing readily accessible emergency equipment for various flight conditions (e.g., ETOPS, high-passenger-capacity scenarios).
-
Comfort
- Incorporating ergonomic design in seats, galleys, and lavatories to reduce fatigue or discomfort.
- Maintaining a pleasant cabin environment (temperature, noise, lighting) for an improved passenger experience.
-
Sustainability
- Promoting lightweight, durable, and environmentally friendly materials in cabin interiors.
- Encouraging circular economy approaches, such as recyclable seat foams or upcycled fabrics, reducing aviation’s carbon footprint.
-
Compliance
- Adhering to FAA/EASA regulatory frameworks (FAR 25, CS 25) for flammability, occupant safety, and emergency egress.
- Maintaining thorough documentation of design, testing, and maintenance to ensure ongoing airworthiness and readiness for audits.
-
Efficiency
- Optimizing cabin layouts to minimize turnaround times, maximize capacity, and facilitate easy maintenance.
- Introducing modular or scalable designs that adapt to market demands or route changes.
By defining these objectives, ATA 25 provides a clear framework for developing, installing, and maintaining equipment and furnishings that deliver a safe, comfortable, and regulatory-compliant cabin environment.
Below are answers to frequently asked questions about the Scope and Objectives of ATA Chapter 25:
Answer:
ATA Chapter 25 directly shapes passenger comfort and safety by setting standards for seat ergonomics, cabin layout, furnishing materials, and emergency equipment placement. By complying with these guidelines, airlines ensure a more spacious, comfortable, and secure cabin environment. This includes optimal seat pitch, effective noise reduction, and intuitive layout for quick egress in emergencies—all of which significantly enhance the passenger experience.
Answer:
Recent innovations include lightweight composite panels, bio-based seat foams, self-healing coatings, and modular bin designs that streamline installation and maintenance. These modern materials and methods reduce overall aircraft weight, lower fuel consumption, and provide higher durability, thereby aligning with sustainability and operational cost savings.
Answer:
ATA 25 emphasizes environmentally friendly materials, lightweight components, and recyclable seat coverings to reduce the cabin’s ecological footprint. It also encourages cabin layouts that can be reconfigured or upgraded, prolonging the service life of materials. Additionally, new sections often highlight the circular economy approach, focusing on recycling, refurbishing, or upcycling cabin elements.
Answer:
Key regulations include flammability standards (FAR/CS 25.853), seat crashworthiness tests (FAR/CS 25.562), smoke/toxicity limits, and emergency exit/equipment provisions (FAR/CS 25.801+). Each interior component—from seat cushions to overhead bins—must pass specific tests (e.g., 16g dynamic tests, 12-second vertical burn tests) to ensure occupant safety in normal operations and emergency scenarios.
Answer:
Under ATA 25, IFE systems must be integrated with seat structures and cabin layouts without compromising safety (e.g., flammability compliance, secure mounting) or comfort (e.g., avoiding screen glare, ensuring passenger space). Additionally, connectivity hardware must be properly shielded and follow EMI/EMC standards, while design guidelines aim to keep wiring and devices accessible for maintenance yet inconspicuous to passengers.
The Scope and Objectives outlined in ATA Chapter 25 serve as a comprehensive guide for designing and maintaining aircraft cabins. By highlighting safety, comfort, sustainability, compliance, and efficiency, it ensures that every aspect—from seat cushions to emergency slides—supports an optimal passenger experience and meets rigorous aviation regulations. This approach not only benefits airline operators but also fosters innovation and continuous improvement within the aviation industry.
This section provides an overview of the regulatory landscape governing aircraft interiors and furnishings, ensuring compliance with safety and airworthiness standards set by major aviation authorities. It also addresses emerging technological considerations, including cybersecurity and AI-driven systems.
Federal Aviation Regulations (FAR) Part 25 is the primary set of regulations for transport category aircraft interiors:
-
FAR 25.853
Defines flammability standards and burn test requirements for cabin materials, including seats, wall panels, and floor coverings. -
FAR 25.855
Covers thermal/acoustic insulation requirements and fire resistance of insulation materials. -
FAR 25.785
Specifies emergency evacuation requirements, including aisle width, seat spacing, and emergency exit accessibility.
European Union Aviation Safety Agency (EASA) CS-25 is the European equivalent of FAR 25:
-
CS 25.853
Mirrors FAR 25.853 flammability standards. -
CS 25.855
Aligns with FAR 25.855 for thermal/acoustic insulation standards. -
CS 25.785
Corresponds to FAR 25.785 for emergency evacuation requirements.
Key tests for assessing material flammability include:
-
Vertical Burn Test
Measures burn rate, flame propagation, and dripping characteristics. -
Heat Release Rate Test
Assesses the fire hazard potential of cabin materials. -
Smoke Density Test
Evaluates visibility and toxicity of smoke from burning materials.
-
Head Injury Criterion (HIC)
Measures the likelihood of head injury in a crash scenario. -
Dynamic Seat Testing
Evaluates seat strength and occupant protection under simulated crash conditions. -
Seatbelt and Airbag Requirements
Specifies performance standards for restraint systems to minimize injury during impact.
-
Type Certification
Demonstrates compliance of an aircraft’s design with all relevant safety regulations. -
Supplemental Type Certificates (STCs)
Required for modifications to the original type design (e.g., cabin reconfiguration or new seat installations). -
Technical Standard Order (TSO)
Sets minimum performance standards for specific aircraft components (e.g., seats, fire-blocking layers).
Modern aircraft cabins often integrate multiple connected technologies, such as In-Flight Entertainment (IFE), Inflight Connectivity (IFC), and AI-driven cabin management. With these advancements come new regulatory considerations for cybersecurity and data protection:
-
DO-326A / ED-202A
Provide guidelines on airworthiness security processes and methods to address cybersecurity threats across the aircraft lifecycle, including cabin systems. -
DO-356A / ED-203A and DO-355 / ED-204
Complement DO-326A/ED-202A, focusing on methods for assessing information security risks and managing information security related to the flight deck and other connected systems. -
NIST Cybersecurity Framework
While not aviation-specific, it offers a risk-based approach to identifying, protecting, detecting, responding, and recovering from cybersecurity threats. Airlines and OEMs can adapt these principles to mitigate cabin system vulnerabilities. -
Biometric and Data Privacy Regulations
Emerging cabin features (e.g., biometric authentication for seat personalization or crew access) may require compliance with data privacy laws like GDPR in the EU or CCPA in California, along with aviation security directives.
As new technologies are introduced into aircraft cabins, regulators and standards bodies are evolving their frameworks to address safety, performance, and operational considerations:
-
AI-Powered Cabin Systems
- Certification Challenges: Ensuring transparency, explainability, and reliability of AI algorithms for real-time cabin management.
- Safety Assurance: Potential need for new guidance similar to DO-178C (software certification) that addresses machine learning components.
- Explainability and Transparency: Critical for safety analysis and incident investigation.
- Data Integrity: Importance of high-quality, representative training data.
- Human-Machine Interface (HMI): Need for clear and intuitive interfaces for cabin crew interaction.
-
Wireless Power Transfer (WPT)
- Electromagnetic Interference (EMI): Assessing and mitigating EMI risks, ensuring no adverse effects on critical avionics.
- Regulatory Oversight: Additional testing might be required to demonstrate safe integration of WPT within the cabin environment.
-
Biometric Authentication
- Privacy and Data Protection: Storing and processing passenger or crew biometric data raises concerns under local and international data privacy regulations.
- Fail-Safe Measures: Ensuring alternative non-biometric access or identification methods in the event of system failure.
-
3D-Printed Components
- Material Consistency: Demonstrating that additively manufactured parts meet flammability and mechanical requirements consistently.
- Regulatory Harmonization: FAA and EASA are progressively updating guidelines to cover additive manufacturing in interiors, requiring robust documentation of print processes and material quality.
While FAA and EASA regulations are primary references, several international bodies also shape cabin-related standards:
-
ISO (International Organization for Standardization)
Some ISO standards address materials testing, wheelchair restraint systems (e.g., ISO 7176), and process quality. -
SAE International
Develops aerospace standards (e.g., SAE AS6081 for counterfeit electronic parts detection) that can impact cabin electronics and subcomponents. -
ICAO (International Civil Aviation Organization)
Provides high-level harmonization efforts and recommended practices, although detailed interior regulations typically fall under regional authorities (FAA/EASA).
Air travel is rapidly evolving, and regulatory bodies are adapting to new technologies and passenger expectations:
-
Sustainable Materials
Regulators may introduce stricter guidelines on eco-friendly, low-toxicity materials and promote lifecycle assessments to reduce environmental impact.- Examples: Bio-based composites, recycled materials.
-
Autonomous & Robotic Systems
Airlines exploring automated cleaning bots, AI-based passenger service, or robotic cabin attendants will face new certification challenges related to occupant safety and system reliability. -
Passenger Wellness and Comfort
Potential new standards or advisory circulars for cabin pressure, humidity control, and advanced air filtration systems, driven by growing health and well-being considerations. -
Cybersecurity
As cabin connectivity increases, regulators will likely introduce expanded requirements for vulnerability assessments, secure software updates, and incident response protocols.
Regulations also impact the maintenance and continued airworthiness of cabin equipment and furnishings, including:
-
Inspection Requirements
Regular inspections to ensure all components meet safety and operational standards. -
Repair Procedures
Standardized procedures for repairing or replacing cabin equipment to maintain compliance and functionality. -
Role of Maintenance Organizations
Maintenance organizations must be certified and follow strict guidelines to ensure ongoing airworthiness.
-
What are the specific requirements for flammability tests in aircraft interiors?
They include vertical burn tests, heat release rate tests, and smoke density measurements, as specified in FAR 25.853 and CS 25.853. -
How do FAA and EASA regulations differ in terms of aircraft interior standards?
Though largely harmonized, there can be minor variations in test procedures, documentation, or timelines between FAR Part 25 and EASA CS-25. -
What are the key components tested for thermal/acoustic insulation in aircraft cabins?
Insulation blankets, interior panels, and some subfloor materials are tested for burnthrough resistance and heat/smoke emission characteristics. -
How are emergency evacuation requirements enforced in aircraft design?
Regulators enforce them by reviewing design compliance, ensuring aisle widths, seat spacing, and exit row placements meet standards (FAR 25.785 / CS 25.785). -
What are the main challenges in meeting head injury criterion (HIC) standards?
Designing seat structures and restraints that dissipate impact forces effectively, while minimizing weight and maintaining comfort, is a key engineering challenge. -
How are regulations adapting to AI and machine learning in cabin systems?
Guidance is still developing; regulators expect rigorous validation, transparent algorithms, and fail-safe architectures similar to DO-178C for software certification. -
What about data privacy for biometric or passenger preference data?
Operators must comply with data protection laws like GDPR or CCPA, in addition to following aviation security directives (DO-326A/ED-202A) for cybersecurity risk management. -
Which international standards bodies influence cabin equipment beyond FAA/EASA?
ISO, SAE International, and ICAO can issue relevant guidelines or recommended practices that manufacturers or operators voluntarily adopt or adapt.
Note
This updated section includes cybersecurity, emerging technologies, international standards, and future trends to reflect an ever-evolving regulatory environment. Ensuring compliance in these areas is critical to maintaining safe, efficient, and forward-looking aircraft interiors.
Crew rest compartments are designated areas within the aircraft for flight crew to rest during long-haul operations, ensuring they remain alert and fit to perform safety-critical tasks. Proper design and certification of these compartments involve:
-
Location and Access
- Proximity: Crew rest areas should be accessible from the flight deck and/or main passenger cabin but located to minimize noise and disturbance.
- Accessibility: Clear signage and unobstructed pathways for rapid egress during emergencies.
-
Emergency Egress Requirements
- Exit Routes: At least one dedicated exit or emergency hatch for quick evacuation.
- Lighting and Signage: Compliance with FAR/CS 25.812 for emergency lighting; illuminated signs indicating exit points.
-
Ventilation and Environmental Controls
- Airflow: Sufficient ventilation to maintain acceptable air quality, temperature, and humidity for resting crew, promoting optimal rest.
- Noise Reduction: Soundproofing measures to ensure adequate rest and minimize disturbance from cabin or aircraft systems. Crew rest compartments should not exceed an Leq (equivalent continuous sound level) of 75 dBA during any significant portion of the flight (FAA AC 121-31). Some operators may implement lower noise targets or active noise control systems.
- Temperature and Humidity: Maintain a comfortable temperature range of 65–75°F (18–24°C) and a relative humidity between 30–50% to enhance rest quality (values may vary based on airline policy and crew feedback).
-
Lighting and Ergonomics
- Lighting Controls: Adjustable lighting for rest periods (e.g., dimmable or “night” modes).
- Bedding/Seating: Ergonomic mattresses or seats designed to meet crashworthiness requirements (dynamic testing, flammability).
- Bedding Dimensions and Support: Specify minimum dimensions for bunks/beds to accommodate a wide range of crew member sizes and ensure proper spinal support.
-
Safety and Certification Standards
- Flammability: Materials must comply with FAR 25.853 / CS 25.853 for vertical burn, heat release, and smoke density.
- Crew Alerting Systems: Interphone or alert panels to contact/rest crew quickly in normal or emergency situations. Specify the types of alerts required (e.g., visual and auditory) and their purpose (e.g., emergency notifications, wake-up calls). These systems must be distinct and readily distinguishable from other cabin alerts.
- Fire Detection/Suppression: Integrated smoke detectors and/or fire suppression systems if the compartment is fully enclosed.
-
Maintenance and Inspection
- Regular Checks: Routine inspections ensuring bedding, restraints, and safety equipment remain serviceable.
- Record-Keeping: Documenting any repairs or replacements in the aircraft’s maintenance log, ensuring ongoing compliance.
-
Structural Integrity
- Load Factors: Design must withstand specified emergency landing loads as per FAR/CS 25.561.
- Attachment Points: Secure mounting of all fixtures and furnishings to withstand turbulence and potential impact scenarios.
-
Communication Systems
- Intercom: Two-way communication system between rest area and flight deck.
- Public Address: Ability to receive all PA announcements, including emergency instructions.
-
Occupancy Limitations
- Maximum Capacity: Clear signage indicating the maximum number of occupants allowed.
- Duty Time Regulations: Compliance with airline-specific and regulatory body rest requirements.
-
Privacy and Security
- Curtains/Doors: Mechanisms to ensure privacy while allowing quick access in emergencies.
- Personal Storage: Secure storage for crew belongings, integrated with the compartment design.
-
Certification Process
- Mockup Evaluations: Full-scale mockups for human factors assessment and evacuation trials.
- Documentation: Detailed compliance reports demonstrating adherence to all applicable regulations.
-
Customization Options
- Modular Designs: Flexibility to accommodate different aircraft configurations and airline preferences.
- Cultural Considerations: Adaptability to meet diverse crew needs across global operations.
-
Oxygen Requirements
- Dedicated Supply: Class 1 crew rest compartments typically require a dedicated oxygen supply sufficient for all occupants. Class 2 and 3 requirements may vary, potentially allowing for portable oxygen bottles.
- Compliance: Oxygen systems must comply with FAR/CS 25.1441 and be readily accessible in case of emergency.
-
Human Factors and Psychological Well-being
- Ergonomics: Expand on bed dimensions, support, and overall comfort to reduce fatigue.
- Psychological Well-being: Acknowledge the importance of the compartment in reducing stress and improving the mental state of crew members during long flights.
-
Training Requirements
- Training: Touch upon the training requirements for flight crew regarding proper use of crew rest compartments, including emergency procedures.
-
Classifications of Crew Rest Areas
- Class 1: Typically a separate compartment with bunks and a higher level of isolation from noise and light.
- Class 2: Usually a sectioned-off area in the cabin with lie-flat or reclining seats and curtains.
- Class 3: Reclining seats offering more comfort than standard passenger seats but not necessarily lie-flat.
-
Integration of Smart Technologies
- Smart Bedding: Explore the use of mattresses with integrated sensors to monitor sleep quality, adjust firmness and temperature, and provide recommendations for improving rest.
- Adaptive Lighting: Dynamic lighting systems that adjust color temperature and intensity to simulate natural light cycles, promoting better sleep and circadian rhythm alignment.
- Noise-Canceling Technology: Active noise cancellation integrated into the compartment design or personal devices to enhance rest quality.
-
Enhanced Connectivity and Entertainment
- Personalized Entertainment Systems: Individual IFE systems with a wider selection of content to promote relaxation and stress relief.
- Connectivity for Personal Devices: Reliable Wi-Fi for communication, online activities, or leisure during rest periods.
-
Advanced Health Monitoring
- Wearable Sensors: Monitoring vital signs, sleep patterns, and stress levels. Data can guide personalized recommendations for improving rest and well-being.
- Environmental Sensors: Monitoring air quality, temperature, and humidity to ensure optimal conditions, with alerts if parameters fall outside recommended ranges.
-
Virtual Reality Applications
- VR for Relaxation and Stress Reduction: Immersive experiences designed for meditation or relaxation.
- VR for Training and Simulation: Emergency procedure training or simulations of various cabin environments to enhance crew preparedness.
By addressing these requirements, 25.35.1 ensures that crew rest compartments provide a safe, comfortable environment for extended operations while meeting stringent aviation standards for occupant protection and emergency readiness.
-
How do crew rest compartments impact crew fatigue management?
Crew rest compartments significantly reduce fatigue by providing a dedicated space for rest, allowing crew to maintain alertness and performance during long-haul flights. -
What are the latest advancements in crew rest compartment design?
Recent advancements include enhanced soundproofing, improved ergonomic bedding, integrated climate control systems, advanced alerting systems, and smart technologies like adaptive lighting and noise cancellation. -
How do different airlines implement crew rest compartment standards?
Airlines customize crew rest compartments based on specific operational needs, regulatory requirements, and crew feedback to optimize rest conditions and ensure compliance. -
What role does ergonomics play in the design of crew rest areas?
Ergonomics ensures these areas provide maximum comfort and support, reducing fatigue and physical strain on crew members during rest periods. -
How are ventilation systems in crew rest compartments tested for efficiency?
They undergo rigorous testing to verify proper airflow, temperature control, and air quality, complying with regulatory standards for crew health and comfort.
Crew rest facilities on the GAIA AIR AMPEL360, a next-generation sustainable, no-contaminant, long-range, extra-wide-body green aircraft, are a critical component of its overall design and operational philosophy. These facilities must not only ensure optimal crew performance and safety, particularly during extended operations, but also embody the aircraft's core principles of environmental responsibility and technological innovation. The design and implementation of these facilities will vary significantly depending on flight duration and are governed by international regulatory requirements, with GAIA AIR aiming to exceed these standards to set a new benchmark for sustainable aviation.
- Definition: Typically under 6 hours of flight time.
- Rest Facilities:
- Minimal or No Dedicated Areas: Given the shorter duration of these flights within the AMPEL360 network, separate rest compartments may not be required.
- Sustainable Seating: Even for short rest breaks, GAIA AIR should utilize passenger seats and jump seats made from recycled and sustainable materials, emphasizing ergonomic design and comfort.
- Limited Need for Full Sleep Cycles: The flight duration usually does not warrant extended sleep periods.
- Definition: Generally 6–12 hours in duration.
- Rest Facilities:
- Eco-Friendly Basic Rest Areas: GAIA AIR should incorporate reclining seats or simple bunks constructed from lightweight, sustainable materials (e.g., bamboo, recycled aluminum, bio-composites). These can be located in a sectioned-off space, potentially above or near the cockpit area, optimized for the AMPEL360's extra-wide-body design.
- Short Rest Cycles: Facilities are designed for brief naps, with a focus on maximizing the restorative power of short breaks through optimized lighting and noise reduction.
- Class 2 Rest Facility (Typical, but with Enhanced Sustainability): Lie-flat or significantly reclining seats separated by curtains made from recycled or organic fabrics—aligned with AMPEL360's commitment to crew well-being and environmental responsibility.
- Definition: Typically over 12 hours.
- Rest Facilities:
- Dedicated Sustainable Compartment: For long-haul AMPEL360 operations, dedicated crew rest compartments are essential and must be designed with a minimal environmental footprint. Likely located in the overhead space (above the main cabin) or in a lower-deck area, taking advantage of the AMPEL360's extra-wide-body configuration.
- Full Sleep Cycles with Green Technology: Lie-flat bunks made from sustainable materials that allow for deeper rest. GAIA AIR should incorporate biodynamic or circadian-friendly lighting to improve crew fatigue management.
- Enhanced Eco-Friendly Amenities: Individual lighting controls (energy-efficient LEDs), temperature adjustments (low-energy climate control), noise-canceling materials (recycled or natural sound-absorbing fabrics), and privacy curtains/doors.
- Class 1 Rest Facility (Exceeding Standards): Enclosed area with bunks that provide superior isolation from noise and disturbance, showcasing AMPEL360's commitment to both crew well-being and environmental responsibility.
- Definition: Generally over 16 hours of flight time.
- Rest Facilities:
- Most Comprehensive and Sustainable Options: GAIA AIR will provide larger, more private bunks or mini-suites with a focus on recycled, sustainable, and low-VOC materials, accommodating multiple rest periods and crew rotations.
- Advanced Comfort with Minimal Environmental Impact: Implement noise-canceling technology, personal climate controls (energy-efficient systems), and enhanced privacy (fully enclosed bunks/suites).
- Multiple Separate Rest Areas: Separate zones for flight deck crew and cabin crew, ensuring sufficient rest for each group on AMPEL360’s most demanding missions.
- Incorporation of Next-Gen Green Amenities: Smart bedding made from organic or recycled textiles, adaptive LED lighting, wearable health monitoring, and possibly biophilic design elements (e.g., small self-sustaining plant features).
- Zero-Contaminant Air Systems: Advanced air filtration/purification to maintain the highest air quality, aligning with the AMPEL360's no-contaminant vision.
- Closed-Loop Water Recycling: Feasibility studies for closed-loop water systems in any washing or hygiene facilities within the rest areas.
Regulations from FAA, EASA, and other authorities define three classes of crew rest facilities (Class 1, Class 2, Class 3). GAIA AIR aims to exceed these by integrating sustainability into each class for the AMPEL360.
-
Class 1 (Enhanced for Sustainability)
- Provides a flat or near-flat sleeping surface (bunk/bed) made from sustainable materials.
- Physically separated from the flight deck and passenger cabin.
- Offers sound and light isolation, potentially using innovative, eco-friendly, sound-dampening materials.
-
Class 2 (Enhanced for Sustainability)
- At least a lie-flat seat made from recycled and sustainable materials, with privacy curtains (organic or recycled fabrics).
- Typically used for medium-haul or slightly shorter long-haul operations.
- Provides partial separation from passenger areas.
-
Class 3 (Enhanced for Sustainability)
- A reclining seat made from sustainable materials, with minimal partition or privacy.
- Suitable for short/medium-haul flights where only brief rest is required.
- Increasing Flight Duration → Increasing Rest Facility Complexity & Sustainability
As AMPEL360 flight hours extend, the need for enclosed bunks, noise suppression, and more sophisticated amenities rises—maintaining a strong focus on green design. - Crew Alertness, Safety, & Well-being
Quality rest directly influences crew performance, alertness, and emergency response capabilities. - Regulatory Compliance & Beyond
GAIA AIR will comply with FAA, EASA, and other relevant authorities while pioneering sustainable practices that exceed standard requirements. - Operational Flexibility & Efficiency
Properly designed rest facilities allow for optimal crew scheduling—crucial for long and ultra-long-haul routes. - GAIA AIR Brand & Innovation
Crew rest facilities showcase GAIA AIR’s commitment to innovation, sustainability, and crew well-being, reinforcing the AMPEL360's status as a leader in next-generation aviation. - Holistic Crew Fatigue Management
Crew rest areas are integral to a broader fatigue management strategy, combining advanced technology, design, and operational procedures. - Future-Proofing with Green Technologies
Incorporate cutting-edge, eco-conscious solutions—biometric monitoring, smart bedding, closed-loop systems—that push the boundaries of sustainable aviation.
| Flight Duration | Facility Type (Class) | Sustainability Focus | Key Features |
|---|---|---|---|
| Short-Haul (<6 hrs) | Class 3 (Reclining Seat) | - Recycled/eco-friendly seat materials - Minimal rest needs |
- Use of ergonomic passenger seats - No dedicated bunks - Basic comfort |
| Medium-Haul (6–12 hrs) | Class 2 (Lie-Flat Seat) | - Lightweight, bio-based or recycled seats - Organic fabric curtains |
- Simple bunks or fully reclinable seats - Short rest cycles - Noise-mitigated area |
| Long-Haul (>12 hrs) | Class 1 (Enclosed Bunks) | - Sustainably sourced bunk materials - Low-energy lighting & climate control |
- Dedicated compartment with lie-flat bunks - Individual lighting controls - Noise-canceling materials |
| Ultra-Long-Haul (>16 hrs) | Class 1 (Advanced) | - High-level of eco-friendly finishes & technologies - Zero-contaminant air and closed-loop water systems |
- Multiple bunk rooms or mini-suites - Biophilic design elements - Wearable health monitoring & active noise cancellation |
- What specific sustainable materials/technologies will be used in the GAIA AIR AMPEL360 crew rest facilities?
GAIA AIR should provide a detailed list (e.g., recycled aluminum, bio-composites, organic fabrics, mycelium-based composites, low-VOC adhesives). - How will GAIA AIR ensure that the AMPEL360 crew rest areas meet both safety and comfort standards while adhering to sustainability goals?
Through dynamic testing of bunks/seats, robust certification processes, and lifecycle assessments that balance safety, comfort, and environmental impact. - How does the design of crew rest facilities contribute to the “no-contaminant” goal?
Utilizing low-VOC materials, advanced filtration, and strict contamination controls to maintain the highest air quality within the rest compartments. - How will GAIA AIR manage crew rest periods on ultra-long-range AMPEL360 flights, factoring in sustainability?
Employing crew rotations alongside wearable fatigue monitors, streamlined scheduling, and minimal resource usage (e.g., closed-loop water, low-energy lighting). - Which regulations are most relevant to GAIA AIR AMPEL360 operations, and how will the airline exceed them with sustainable initiatives?
FAA & EASA guidelines plus any national authorities in GAIA AIR’s operational network; GAIA AIR aims to surpass these requirements through ecological material choices, green engineering, and innovative design practices.
By designing crew rest facilities that prioritize both crew well-being and environmental responsibility, GAIA AIR ensures the AMPEL360 program is supported by a well-rested, alert, and high-performing crew—capable of meeting the demands of this ambitious project while setting a new standard for sustainability in the aviation industry.
25.35.3 Crew Rest Area Maintenance and Inspection for GAIA AIR AMPEL360: An Advanced Technological Approach
Maintaining the crew rest areas on the GAIA AIR AMPEL360, a next-generation sustainable, no-contaminant, long-range, extra-wide-body green aircraft, is crucial not only for ensuring crew comfort and safety but also for upholding the aircraft's core principles of sustainability, technological innovation, and no-contaminant operation. A rigorous, proactive, and technologically advanced maintenance and inspection program is essential to guarantee that these areas remain in optimal condition, comply with all relevant regulations, and continue to meet the high standards set by GAIA AIR for this revolutionary aircraft.
-
Sustainability
- All maintenance and inspection procedures must prioritize the use of environmentally friendly cleaning agents, materials, and processes.
- Minimize waste, conserve water, use energy-efficient equipment, and integrate advanced technologies like UV-C disinfection and greywater recycling.
-
No-Contaminant Environment
- Maintenance procedures must ensure crew rest areas remain free from biological, chemical, and particulate contaminants.
- Require specialized cleaning protocols, advanced air filtration systems, and real-time monitoring with integrated sensors.
-
Crew Well-being
- Maintenance programs must contribute to a healthy, restorative environment for the crew, including biophilic design principles and circadian lighting systems.
- Support physical and mental well-being during rest periods.
-
Regulatory Compliance
- All maintenance and inspection activities must adhere to FAA, EASA, and other relevant authority regulations.
- Exceed additional standards established by GAIA AIR for the AMPEL360.
-
Proactive, Predictive, and Preventative
- Focus on proactive measures, leveraging predictive maintenance informed by sensor data, machine learning, and automation.
- Address potential issues before they affect crew rest or compromise system integrity.
-
Data-Driven Optimization
- Collect and analyze maintenance/inspection data to continually improve procedures, optimize resource allocation, and inform future design iterations.
- Embrace iterative enhancements based on real-world insights.
The GAIA AIR AMPEL360 crew rest area maintenance and inspection schedule integrates cutting-edge technologies for thorough, efficient upkeep:
-
Pre-Flight Checks
- Automated verification of cleanliness and sanitation using sensor-based monitoring and robotic inspection.
- Confirmation of system functionality (lighting, climate, communication) via automated diagnostics.
- Computer vision inspections of bedding/amenities to assess cleanliness and condition.
- Real-time air quality checks with integrated sensors to maintain the no-contaminant standard, triggering alerts if thresholds are exceeded.
-
Post-Flight Cleaning
- Autonomous cleaning robots (with UV-C disinfection capabilities) for surfaces.
- Removal and laundering of bedding/linens using sustainable laundry practices, potentially with greywater recycling.
- Automated waste management emphasizing recycling and minimal environmental impact (e.g., smart bins that auto-sort waste).
-
Periodic Deep Cleaning and Inspections
-
Weekly/Monthly (based on flight duration/utilization):
- Deep cleaning of surfaces (walls, floors, ceilings, bunks) via autonomous robots and manual methods with eco-friendly, no-contaminant cleaning agents.
- Inspection of structural components for wear, possibly using drones for difficult-to-reach areas.
- Automated diagnostics and physical checks of safety equipment (exits, fire suppression).
- Real-time air quality testing through integrated sensors; data analytics for trend identification.
- UV-C disinfection of the entire compartment as an additional safeguard.
-
Quarterly/Annually:
- Comprehensive system inspections, including electrical, plumbing (if applicable), and HVAC, guided by predictive maintenance algorithms.
- Filter replacements in advanced air filtration systems (e.g., activated carbon, photocatalytic oxidation) determined by sensor feedback.
- Acoustic performance checks for noise-canceling materials/systems.
- Condition assessments for all sustainable materials; repairs or replacements as needed, based on data-driven wear insights.
-
-
Sustainable Material Care
- Tailored cleaning/maintenance protocols for each sustainable material type, leveraging robotic or automated solutions for consistency and minimal wear.
- Use cleaning agents compatible with material integrity and sustainability goals.
-
No-Contaminant Protocols
- Autonomous cleaning robots equipped with HEPA filters, UV-C disinfection, and specialized tools for biological/chemical decontamination.
- Regular testing for biological contaminants; automated alerts/remediation (UV-C or other approved methods).
- Continuous VOC monitoring via integrated sensors; automated ventilation/alert systems if thresholds exceed set limits.
-
Advanced Air Quality Management
- Ongoing inspection, maintenance, and automated calibration of air filtration/purification systems.
- Filter replacements driven by real-time data/predictive algorithms, not fixed intervals.
- Continuous monitoring of particulate matter, CO₂, VOCs, etc., with integrated sensor networks, centralized dashboards, and trend analysis.
-
Water Conservation
- Water-saving cleaning measures (e.g., pre-moistened wipes, efficient sprayers, autonomous robots optimized for minimal water usage).
- Maintenance/optimization of greywater recycling systems for any onboard hygiene facilities.
-
Energy Efficiency
- LED lighting and climate control systems optimized for minimal energy consumption, adjustable based on occupancy/real-time conditions.
- Regular checks and data-driven adjustments to maintain peak efficiency.
-
Next-Gen Technology Maintenance
- Calibration and upkeep of sensor networks, robotic systems, UV-C disinfection tools, and other advanced technologies.
- Software updates for predictive maintenance algorithms and data analytics platforms.
- Upkeep of wearable health-monitoring devices and smart bedding interfaces.
- Maintenance of any indoor plants (if used) via automated watering/monitoring systems.
- Regular checks of circadian lighting systems to ensure proper calibration and scheduling for crew rest.
- Use of natural, non-toxic cleaning agents to maintain a biophilic atmosphere and minimize chemical exposure.
-
Digital Documentation
- Fully paperless process, using tablets and cloud-based platforms for real-time data entry and accessibility.
-
CMMS
- A Computerized Maintenance Management System integrates sensor data, predictive algorithms, and manual entries to track, manage, and optimize all maintenance activities.
-
VR/AR Training
- Immersive VR/AR modules for maintenance personnel, covering AMPEL360-specific procedures and advanced technology use.
-
Continuous Training
- Regular skill updates regarding new technologies, materials, and best practices, ensuring ongoing proficiency.
-
Data-Driven Optimization
- Regular review and updates to the crew rest area maintenance/inspection strategy informed by operational feedback, crew inputs, and sensor analytics.
-
Innovation
- Ongoing evaluation and adoption of emerging technologies (e.g., improved robotic systems, more effective cleaning agents) to advance sustainability, efficiency, and effectiveness.
-
Audits
- Scheduled internal/external audits to ensure strict adherence to protocols, verify the no-contaminant environment, and highlight improvement areas.
By implementing this advanced, technology-driven maintenance and inspection program for the AMPEL360 crew rest areas, GAIA AIR guarantees these spaces remain safe, comfortable, and fully aligned with its sustainability and no-contaminant ethos. This commitment to innovation and excellence in maintenance underscores GAIA AIR’s leadership in green aviation, setting a new industry benchmark for crew well-being and operational integrity.
Modern aircraft cabins, including those of the GAIA AIR AMPEL360, increasingly rely on interconnected systems for in-flight entertainment (IFE), connectivity, cabin management, and even some aspects of flight control. This interconnectedness brings significant cybersecurity challenges that must be addressed to ensure the safety and security of the aircraft and its passengers.
-
DO-326A / ED-202A (Airworthiness Security Process Specification)
This standard provides a framework for addressing information security risks throughout the aircraft lifecycle, from design and development to operation and maintenance. It emphasizes a risk-based approach to cybersecurity, requiring manufacturers and operators to identify, assess, and mitigate potential vulnerabilities in aircraft systems, including cabin networks. -
DO-356A / ED-203A (Airworthiness Security Methods and Considerations)
This document provides guidance on implementing the security processes outlined in DO-326A. It offers specific methods and techniques for conducting security risk assessments, developing security controls, and verifying their effectiveness. -
DO-355 / ED-204 (Information Security Guidance for Continuing Airworthiness)
Focuses on the ongoing management of cybersecurity risks after an aircraft has entered service. It covers topics such as security monitoring, incident response, and vulnerability management. -
ISO/SAE 21434 (Road vehicles — Cybersecurity engineering)
Initially developed for the automotive industry, ISO/SAE 21434 is increasingly being adapted for aviation cybersecurity. It provides a comprehensive framework for managing cybersecurity risks throughout the product lifecycle, offering valuable insights for securing cabin systems—particularly in areas like supply chain security and vulnerability management.
-
Unauthorized Access:
Attackers may attempt to gain unauthorized access to cabin systems through vulnerabilities in the IFE, onboard Wi-Fi, or other connected systems, potentially disrupting services or accessing sensitive data. -
Malware Injection:
Malicious software could be introduced via compromised devices, infected USB drives, or vulnerabilities in the software supply chain, leading to data theft, system disruption, or further attacks. -
Denial-of-Service (DoS) Attacks:
Flooding cabin networks with traffic can overwhelm systems, causing them to become unavailable. This disrupts IFE services, prevents passenger internet access, or interferes with cabin management functions. -
Man-in-the-Middle (MitM) Attacks:
Hackers could intercept and manipulate communications between passengers and the IFE system or between different cabin systems, enabling data theft, malicious code injection, or system settings alteration.
Cabin systems, like any software-based system, require regular updates to address security vulnerabilities and improve functionality. These updates must be delivered and installed securely to prevent attackers from tampering with them. Common secure update mechanisms include:
- Digital Signatures: Ensuring the authenticity and integrity of software packages.
- Encryption: Protecting the update payload during transmission.
- Secure Boot Processes: Verifying firmware/software integrity before execution.
Airlines and operators need well-defined incident response plans to handle cybersecurity incidents affecting cabin systems. These plans typically include:
- Detection: Continuous monitoring for anomalies or breaches.
- Containment: Quick isolation of compromised systems to prevent further damage.
- Eradication: Removal of malicious software or intruders.
- Recovery: Restoring normal operations and verifying system integrity.
- Communication: Notifying authorities, stakeholders, and passengers when necessary.
Cabin systems, especially IFE and connectivity services, often collect and process passenger data (e.g., personal information, browsing history, payment details). Regulatory compliance is critical:
- GDPR (Europe): Requires informed consent for data collection, strong data protection measures, and the right for individuals to access or erase their data.
- CCPA (California): Similar data protection and privacy rights, including the right to know what data is collected and to request its deletion.
With the rise of biometric data (e.g., facial recognition for personalization), additional safeguards and stricter compliance measures may apply.
Blockchain technology, featuring a decentralized and immutable ledger, can enhance data security in cabin systems:
- Passenger Identity Management: Passengers could control their data, granting or revoking access to specific info as needed.
- Software Update Integrity: Ensuring only authorized and untampered updates are installed.
- Secure Data Sharing: Storing maintenance logs, passenger manifests, or baggage info on a blockchain to improve transparency and auditability.
(Refer to diagrams illustrating secure cabin network architecture, with segments isolating passenger-facing systems from flight-critical operations. Ensure robust firewalls, intrusion detection/prevention, and secure data flows.)
As technology evolves, so do the regulations governing its use in aircraft. The GAIA AIR AMPEL360, as a next-generation platform, must comply with existing regulations and anticipate emerging ones, especially in AI, autonomous systems, and novel materials.
- Safety Assurance: AI systems for passenger comfort optimization, predictive maintenance, or crew assistance must meet evolving safety frameworks. Regulators are exploring dynamic licensing or continuous monitoring of AI performance.
- Explainability and Transparency: AI “black box” models pose certification challenges. Regulators may require a level of explainability for incident investigation and safety analysis.
- Data Integrity: Ensuring the quality and security of training data is critical, with robust validation processes.
- Ethical Considerations: Passenger data privacy, bias in AI decision-making, and prioritization of resources under constraints.
- Human-Machine Interface (HMI): Crew must effectively monitor, understand, and override AI-driven systems if needed.
If GAIA AIR AMPEL360 adopts WPT for passenger devices or cabin systems:
- EMI Concerns: Requires specific shielding/filtering to prevent interference with avionics.
- Additional Testing: Demonstration of safe integration and minimal risk to critical systems.
- Privacy and Data Protection: Adhering to GDPR, CCPA, or other local data laws.
- Fail-Safe Mechanisms: Ensuring alternative, non-biometric options exist if the system fails or passengers opt out.
- Certification Consistency: 3D-printed parts must meet the same safety/performance criteria as traditional parts.
- Material/Process Documentation: Regulators (FAA, EASA) require detailed records of print processes, materials, and quality assurance.
- Eco-Friendly Alternatives: Potential for stricter guidelines on low-toxicity, recyclable, and bio-based materials.
- Incentivized Adoption: Some agencies may streamline certification for sustainable interior components.
- Safety & Liability: Autonomous cleaning or passenger service robots must comply with standards ensuring safe human-robot interaction.
- Regulatory Gaps: Guidelines for these systems are evolving, focusing on collision avoidance, emergency overrides, and reliability.
- New Standards: Potential advisory circulars on cabin pressure, humidity, advanced air filtration, and lighting for ultra-long-haul flights.
- Demonstrable Compliance: Airlines could be required to show minimum levels of passenger comfort and well-being, particularly on extended routes.
This section addresses the design, certification, and maintenance of crew rest areas on the GAIA AIR AMPEL360, focusing on long-haul operations, sustainability, and advanced technologies.
Crew rest compartments are essential for maintaining crew alertness and performance on long-haul flights. The GAIA AIR AMPEL360, with its focus on extended operations and crew well-being, needs state-of-the-art crew rest areas that meet/exceed regulatory requirements while embracing sustainability and advanced technologies.
-
Biophilic Design Elements
- Natural Light Simulation: Advanced LED lighting systems mimicking daylight patterns (intensity, color temperature) to help regulate circadian rhythms.
- Nature-Inspired Textures: Materials/finishes that evoke natural environments (wood grains, organic shapes, greenery).
- Green Walls or Low-Maintenance Plants: If feasible, introducing small-scale greenery for air quality and a calming atmosphere.
-
Acoustic Design
- Noise Mitigation: Use of natural sounds or white noise to mask aircraft noise and improve rest quality.
-
Antimicrobial Materials
- Copper Alloys, Silver-Ion Infused Fabrics: Reducing infection risk, especially critical in enclosed crew areas.
- Treated Polymers: Additional protective coatings on surfaces prone to frequent contact.
-
Human-Machine Interface (HMI) Considerations
- Touchscreen Interfaces: Easy to navigate in low-light conditions or while fatigued.
- Voice Control: Hands-free control over lighting, temperature, or entertainment systems.
- Personalization & Accessibility: Let crew customize environment; ensure controls are reachable when seated/lying down.
-
Enhanced Connectivity and Entertainment
- Personalized IFE Systems: Wide content selection (relaxation, mindfulness programs) for stress relief.
- Reliable Wi-Fi: For communication or leisure during rest periods.
-
Advanced Health Monitoring
- Wearable Sensors: Track vital signs, sleep patterns, stress levels. Offer personalized rest recommendations.
- Environmental Sensors: Monitor air quality, temperature, humidity; trigger alerts for suboptimal conditions.
-
Virtual Reality Applications
- VR for Relaxation: Meditation, immersive nature environments to lower stress.
- VR for Training: Emergency procedure simulations, enhancing crew preparedness.
Short-Haul (<6 hrs)
- Minimal Dedicated Areas: Likely no separate rest compartments; seats/jump seats made from recycled materials for brief naps.
- Limited Sleep Cycles: Ergonomic seating essential but no enclosed bunks required.
Medium-Haul (6–12 hrs)
- Eco-Friendly Basic Rest: Reclining seats or simple bunks built from lightweight, sustainable materials (bamboo, bio-composites).
- Short Rest Cycles: Focused on maximizing restorative naps through optimal lighting and noise reduction.
- Class 2 Rest: Enhanced with organic fabric curtains, improved seat design.
Long-Haul (>12 hrs)
- Dedicated Compartment: Overhead or lower-deck space with minimal environmental footprint.
- Full Sleep Cycles w/ Green Tech: Sustainable bunks, biodynamic lighting, low-energy climate control, noise-canceling materials.
- Class 1 Rest: Enclosed area, superior isolation from noise.
Ultra-Long-Haul (>16 hrs)
- Comprehensive Sustainable Options: Larger, more private bunks or mini-suites, low-VOC materials, multi-rotation design.
- Zero-Contaminant Air: Advanced air filtration, closed-loop water if feasible, wearable health monitoring, active noise cancellation.
- Separate Flight Deck & Cabin Crew Zones: Ensuring safe rest for both groups on extended missions.
Regulations (FAA, EASA) define Class 1, 2, 3 rest facilities. GAIA AIR surpasses these by integrating sustainability into each class.
| Flight Duration | Facility Type | Sustainability Focus | Key Features |
|---|---|---|---|
| Short-Haul (<6 hrs) | Class 3 | Recycled/eco-friendly seat materials Minimal rest needs |
Ergonomic passenger seats No dedicated bunks Basic comfort |
| Medium-Haul (6–12 hrs) | Class 2 | Lightweight, bio-based or recycled seats Organic fabric curtains |
Simple bunks/fully reclining seats Short rest cycles Noise mitigation |
| Long-Haul (>12 hrs) | Class 1 | Sustainably sourced bunk materials Low-energy lighting & climate control |
Dedicated compartment Individual lighting Noise-canceling materials |
| Ultra-Long-Haul (>16 hrs) | Class 1+ | Eco-friendly finishes & technologies Zero-contaminant air, closed-loop water systems |
Multiple bunk rooms/mini-suites Biophilic design Health monitoring & active noise cancellation |
Key Principles
- Sustainability: Eco-friendly cleaning agents, minimal waste, water conservation, efficient equipment.
- No-Contaminant Environment: Specialized cleaning protocols, advanced filtration, real-time sensor monitoring.
- Crew Well-being: Biophilic design, circadian lighting, robust rest environment.
- Regulatory Compliance: Adherence to FAA/EASA plus GAIA AIR’s additional standards.
- Proactive, Predictive, Preventative: Leverage sensor data, ML/AI for predictive maintenance.
- Data-Driven Optimization: Continuous improvement via feedback loops, sensor analytics.
Maintenance & Inspection Schedule
- Pre-Flight Checks: Automated cleanliness verification (robotics), system functionality checks, real-time air quality tests.
- Post-Flight Cleaning: Autonomous UV-C disinfection, linen recycling/greywater usage, minimized environmental impact.
- Periodic Deep Cleaning: Weekly/Monthly synergy of robotics + manual checks for surfaces, structural integrity, sensor data analysis.
- Quarterly/Annual: Comprehensive system inspections, filter replacements, acoustic checks, AI-driven predictive analytics.
Advanced Technology
- Cleaning & Inspection Robots: UV-C, HEPA filters, specialized tools.
- Digital Twins: Virtual replica of rest area for simulating wear & tear, optimizing maintenance.
- CMMS Integration: Computerized system tracking all maintenance tasks, leveraging VR/AR training modules.
Waste Management & Recycling
- Material Segregation: Clear disposal guidelines (metals, plastics, fabrics).
- Partnerships: Specialized recycling facilities.
- Lifecycle Tracking: End-to-end traceability of components.
Continuous Improvement
- Data-Driven: Analytics from sensor networks inform schedule adjustments.
- Innovation: Adoption of new technologies (improved robotics, cleaning solutions).
- Audits: Internal/external reviews verifying compliance and identifying enhancements.
(High-level overview of cabin elements like seats, bins, panels, and carpeting—emphasizing safety, comfort, and regulatory compliance.)
- Ergonomic Design: Optimal support for diverse passenger physiques (seat pitch, width, recline, lumbar).
- Lightweight Materials: Advanced composites, structural optimization to lower aircraft weight/emissions.
- Sustainability: Recycled fabrics, bio-based foams, alternative leather.
- Customization: Modular seat solutions for different cabin classes, personalized comfort options.
- Technology Integration: IFE systems, power/USB ports, wireless charging.
- Accessibility: Movable armrests, easily reached controls for PRM.
- Safety: Compliance with crashworthiness (dynamic testing), flammability, egress rules.
- Smart Seats: Sensor-based monitoring of passenger comfort and usage patterns.
- Space Optimization: Balancing capacity with comfort, meeting regs for aisle width/exit row spacing.
- Flexibility/Modularity: Rapid reconfigurations for changing route demands (economy vs. premium ratio).
- Passenger Flow: Efficient boarding/deplaning, improved movement during flight.
- Accessibility: Wider aisles, accessible lavatories, designated PRM seating.
- Zoning: Quiet/family/work areas for varied passenger preferences.
- Biophilic Design: Natural elements, daylight imitation for well-being.
- Modular Components: Standardized, interchangeable seat rows, galley/lav modules.
- Quick-Change Solutions: Movable partitions, fold-down bunks for flexible use (cargo, seating, etc.).
- Personalized Environments: Adjustable lighting, seat settings, IFE content.
- Accessibility & Visibility: Life rafts/vests, oxygen masks, extinguishers clearly marked.
- Strategic Location: Equipment in unobstructed areas near exits or seat stowage.
- Signage & Instructions: Multilingual, pictogram-based.
- Regular Inspections: Ensuring readiness (pressure gauges, expiration dates).
- Crew Training: Locational knowledge, operation drills.
- Hygiene & Sanitation: Easy-to-clean surfaces, antimicrobial materials, touchless fixtures.
- Water Management: Vacuum toilets, water-saving faucets, sealed waste tanks.
- Ergonomics & Safety: Secure stowage, safe working environment for crew in turbulence.
- Accessibility: PRM-friendly lavatories with grab bars, adequate maneuvering space.
- Modularity: Galley/lav blocks tailored to airline’s route and catering needs.
- Secure Restraint: Nets, straps, tie-downs preventing cargo shifting in flight.
- Load Distribution: Balanced weight, preserving aircraft stability.
- Efficient Loading: Automated/roller floors, standardized containers, minimal turnaround.
- Safety: Meeting structural standards, safeguarding crew/aircraft.
- Flexibility: Adapts to varied cargo sizes/types.
- Tracking & Monitoring: Real-time location/condition data for cargo operations.
- Advanced Air Filtration: HEPA, activated carbon, PCO, bipolar ionization for pathogens/odors/VOCs.
- Antimicrobial Surfaces: Materials/coatings for hygienic environment.
- Emergency Lighting: Photoluminescent or LED-based systems, robust battery backups.
- Smart Sensors: Monitoring air quality, seat occupancy, environmental parameters.
- Occupant Monitoring: AI-based systems detecting potential medical issues.
- Fire Suppression: Next-gen detection/suppression minimizing damage.
- Crashworthy Structures: Energy-absorbing seats, bins, partitions.
- Evacuation Systems: Slides/rafts with faster inflation, stable designs, increased capacity.
- Surveillance (CCTV, Facial Recognition): Monitoring the cabin for threats, ensuring passenger/crew safety.
- Access Control: Biometric or advanced keycard entry to cockpit, crew rest.
- Intrusion Detection: Sensors/alarms for tampering or unauthorized access.
- Cybersecurity: Firewalls, secure updates, threat detection (refer to 25.30.6 & 25.46.4).
- Communication: Secure links between cabin crew, cockpit, ground staff.
- Personalized Environments: Passengers customize lighting, temperature, seat settings.
- Smart Windows: Electrochromic for heat/light control.
- IFE: High-definition screens, personal device integration, VR/AR content.
- Wireless Power Transfer: Integrated charging pads in seats/tables.
- Biometric Integration: For streamlined boarding or personalized service.
- Cabin Management Systems: Centralized control for crew, intuitive interfaces.
(Cross-reference 25.30.6 for broader regulatory context.)
-
Network Segmentation: Isolating passenger network from critical avionics.
-
Firewalls/IDPS: Monitoring traffic for malicious activity, blocking unauthorized access.
-
Secure SDLC: Rigorous code reviews, vulnerability scans, and security testing.
-
Frequent Security Updates: Address known vulnerabilities, ensure minimal exploit window.
-
Encryption: Strong protocols for data in transit/stored onboard.
-
Authentication/Authorization: Strict measures controlling who/what can modify systems or data.
Description: A network flowchart displaying the secure data flow within the cabin:
- IFE (In-Flight Entertainment) and passenger Wi-Fi network segregation.
- Encrypted Data Streams between cockpit avionics and cabin monitoring systems.
- Threat Response Nodes indicating where potential threats are identified and mitigated.
Interactive Diagram Access:
This schematic ensures that the Cabin Cybersecurity Framework integrates robust threat detection, encrypted communication protocols, and network segmentation for enhanced passenger safety and operational security.
(Covers equipment like life vests, fire extinguishers, oxygen, slides, plus compliance with CS 25.851, etc.)
- Fire Extinguishers, Life Rafts, Life Vests, Portable Oxygen
- Survival Kits (Overwater or remote ops)
- Crash Axes, Emergency Lighting
- Minimum Requirements: Dictated by passenger capacity.
- Examples: 4 extinguishers for 250 passengers.
- Reference Table: Maps passenger capacity to extinguisher counts.
- Emergency Features: Doors, seat belts, exit signs, lighting, raft location.
- EASA Standards: Specific coverage for fire suppression, crashworthiness.
- Cabin Fire: Quick-release or auto-extinguish systems, crew training.
- Depressurization: Oxygen deployment checks, passenger/crew instructions.
- Evacuation: Slides, aisle widths, egress lighting, crew drills.
(Addresses flammability/toxicity, noise reduction, energy efficiency, plus new sustainable retrofitting and carbon footprint analysis.)
- FAR/CS 25.853 compliance (burn tests, smoke density).
- Low-Toxicity Materials: Minimizing harmful emissions.
- Sound Dampening Panels: Minimize engine/airflow noise.
- Strategic Insulation: Balancing weight with acoustic performance.
- Advanced Insulation: Maintains stable cabin temps, lowers HVAC load.
- Reflective Materials: Minimizing heat ingress/escape.
(New)
-
25.64.1 Retrofitting Process and Material Selection
- Upgrading older interiors to eco-friendly standards, minimal downtime.
- Use of recycled composites, lightweight structures.
-
25.64.2 Waste Reduction and Energy Efficiency in Retrofitting
- Reuse existing components, integrate modular solutions, reduce resource usage.
-
25.64.3 Successful Retrofitting Project Examples
- Showcasing airlines achieving sustainability goals, cost savings, improved passenger feedback.
(New)
-
25.65.1 Methodologies for Calculating Carbon Footprint
- Life-cycle assessments (LCA), emissions tracking from manufacturing to disposal.
-
25.65.2 Transparency and Reporting of Carbon Footprint Data
- Standards for publicly sharing environmental impact metrics.
- Encourages accountability and industry benchmarking.
-
25.65.3 Circular Economy Flow for Cabin Components
- Emphasizes recycling/upcycling at end-of-life, extended producer responsibility.
-
25.66.1 Bio-Based and Recycled Materials
- Algae-derived foams, upcycled plastics, natural fibers.
-
25.66.2 Material Certifications and Standards
- LEED, Cradle-to-Cradle, etc.
-
25.66.3 Supplier Sustainability Assessment
- Vetting suppliers for eco-friendly practices, compliance with GAIA AIR’s sustainability ethos.
(Hardware/software integration, seat power, connectivity, advanced lighting, referencing ATA 24 for power aspects.)
- High-Definition Screens: Low-latency, robust mounting.
- Content Management: DRM, regular updates, user customization.
- Maintenance: Quick-swap LRUs for minimal downtime.
- Passenger Device Support: USB-A/C, universal power, possibly wireless charging.
- Compliant Wiring: Shielding, EMI rules.
- Network Security: Prevent unauthorized system access.
- LED Technology: Efficient, color-tunable for circadian alignment.
- Cabin Ambiance: Pre-set “scenes” (boarding, dining, resting).
- Emergency Override: Reverts to bright lighting for egress.
- Satellite/ATG: Spectrum management, data encryption.
- Cybersecurity: Firewalls, intrusion detection, referencing 25.30.6.
- Crew Override: Priority channels for safety communication.
(Focus on advanced air filtration, humidity control, biophilic design, comfort, etc.)
- HEPA/ULPA Filters: Removing particulates, pathogens.
- Continuous Monitoring: Sensor arrays for CO₂, VOCs, humidity.
- Vaporization/Humidifiers: Maintaining comfortable levels for passenger health.
- Condensation Management: Prevent corrosion or mold.
- Greenery, Natural Materials: Stress reduction, improved mood.
- Nature Simulations: Digital skylights or environment projections.
- Optimized Altitude: Minimizing fatigue, dehydration, especially on long-haul flights.
*(New: Ionization, UV-C, real-time sensor monitoring.)
- PCO (Photocatalytic Oxidation)
- Bipolar Ionization
- UV-C Light Chambers
- Data-Driven Adjustments: Automated response to contamination spikes.
Description: A flow diagram illustrating the air circulation pathways and purification stages:
- UV-C Filtration Units removing pathogens.
- Ionization Technology for neutralizing airborne particles.
- Real-Time Air Quality Sensors connected to cabin display interfaces.
View and Edit Diagram on MermaidChart
This diagram represents a modern, multi-stage air purification system, emphasizing health and comfort in cabin environments. If you need any updates or refinements, let me know!
- PCO: Oxidizing volatile organic compounds, pathogens.
- Bipolar Ionization: Clumping particles, neutralizing bacteria.
- Integration: Ensuring minimal ozone generation, validated for aircraft use.
- Intervals: Defined by flight hours/cycles (weekly, monthly, etc.).
- Documentation: CMMS logging, real-time updates from sensors.
- Crew Roles: Distinguish between line checks vs. heavier “C” or “D” checks.
- Troubleshooting Guides: BITE codes, OEM references.
- Spare Parts: Inventory management for quick replacements.
- Resolutions: Minimizing AOG (aircraft on ground) time.
- Common Failure Modes: Seat recline motors, IFE screens, lav systems.
- Reference Charts: Symptom vs. probable cause matrix.
- Recommended Tools: Specialized test equipment.
- Sensor Integration: Real-time data from seats, bins, environmental systems.
- Predictive Maintenance: AI analyzing wear patterns, scheduling repairs.
- Digital Twins: Virtual modeling for “what-if” scenarios.
- Robotic Inspectors: Checking seat tracks, interior panels.
- Automated Cleaning: Floor robots, UV disinfection for surfaces.
- 25.85.1 Specific Examples: E.g., seat testing rig, overhead bin alignment drone, etc.
- Seat Pitch, Width, Recline: Minimizing discomfort/fatigue.
- Lavatory Access: PRM accommodations, toddler changing tables, etc.
- Noise & Lighting: Reducing stress, improving rest.
- Galley Layout: Efficient, safe workflow.
- Emergency Controls: Intuitive, quick to operate.
- Fatigue Mitigation: Ergonomic seats, smart lighting near crew stations.
- One-Size-Fits-Most: Minimizing special adaptors.
- Aisle Widths: Sufficient for wheelchairs, easy egress.
- Liftable Armrests: Easier seat access.
- Dedicated Seating: With extended legroom, specialized harnesses.
- Accessible Lavatories: Wider doors, handles, emergency call.
(New: Smart wheelchairs, haptic feedback, customizable seating.)
- Smart Wheelchairs: Autonomous/assisted navigation in cabin.
- Haptic Feedback: Tactile cues for the visually/hearing-impaired.
- Customizable Seating: Adjusting for specific disabilities.
- Robotic Guides: Possibly in large wide-body aircraft, guiding PRM passengers.
- Safety Protocols: Avoid collisions, maintain stable environment.
- Simulation-Based: VR modules for seat operations, galley usage, and emergency scenarios.
- Ongoing Updates: As new cabin tech arrives (AI, robotic cleaners).
- Reducing Human Error: Clear procedures, ergonomic tools, fatigue management.
- Optimal Procedures: Balanced shift scheduling, user-friendly documentation.
- Monitoring Crew Schedules: Proactive rest assignment.
- Data-Driven Adjustments: Wearables tracking sleep, stress; modifying duty rosters accordingly.
- Hands-Free Interaction: Passengers/crew can control lights, seat functions, IFE with voice or gestures.
- Noise Robustness: Systems must handle cabin background noise.
- Seatback Touchscreens: Adaptable UI for each passenger’s preferences.
- Device Pairing: Smartphones/tablets as secondary controllers.
- Regulatory Guidance: Ensuring displays, controls do not obstruct emergency egress or distract crew.
- Testing: UI clarity in low-light/turbulence conditions.
- Self-Healing Polymers: Reducing wear/tear, extending life.
- Adaptive Textures: Surfaces reacting to passenger inputs, environmental conditions.
- Training Modules: Realistic emergency or routine scenario simulations.
- Passenger Entertainment: Immersive VR content, destination previews.
- Seat Sensors: Occupancy, comfort analytics.
- Real-Time Maintenance Flags: Identifying seat malfunctions or supply depletion in galleys/lavatories.
- Machine Learning: Spotting patterns in usage/failures.
- Reduced Downtime: Scheduling repairs before system failures.
- Cost Optimization: Minimizing spare part inventory while maintaining readiness.
(Cross-reference 25.30.6 & 25.46.4 for detailed framework.)
- Secure Network Architecture: Isolating critical components.
- Threat Detection: Monitoring logs, intrusion attempts.
- Incident Response: Quick containment, consistent recovery protocols.
- Passenger Personalization: AI adjusts environment based on known preferences.
- Crew Assist: Automated cleaning, restocking notifications, load balancing.
- Ethical/Regulatory: Ensuring overrides if automation malfunctions.
- Airlines implementing rapid seat reconfiguration or VR training with measurable ROI.
- OEM Partnerships: Integrating advanced composites or AI-based cabin monitoring, improving metrics (fuel burn, passenger satisfaction).
- Over-Complex Systems leading to maintainability issues.
- Insufficient Crew Training when introducing AI or new technology.
- Underestimating Cyber Threats: Delayed patches, unsegmented networks.
- Passenger Feedback Integration: Beta-testing new seat designs, IFE content, or service flows.
- Focus Groups & Surveys: Encouraging iterative improvements.
- Joint R&D: Developing custom solutions for unique cabin concepts.
- Shared Data: Improving reliability, maintenance practices, cost efficiency.
- Historical Failure Rates: Seat motors, IFE hardware, galleys.
- Repair Costs: Trend tracking for budgeting.
- Turnaround Times: Key performance indicators (KPIs) for maintenance.
- Click-Through Definitions: Quick referencing of acronyms, technical terms.
- Updates: Live additions as new technologies/regulations arise.
- Regulatory Docs: FAA/EASA circulars, ACs, STC guidelines.
- OEM Manuals: Cross-reference seats, bins, galleys.
- Case Studies: Summaries of best practices from global carriers.
- Ongoing Projects: AI occupant monitoring, hydrogen-based cabin systems, zero-waste solutions.
- Prototype Testing: Collaboration with academic/industry labs.
(List of all regulatory documents, white papers, OEM manuals, and relevant ATA cross-references.)
- FAR Part 25 / EASA CS 25
- DO-326A, DO-356A, DO-355
- ISO/SAE 21434
- OEM Documentation (e.g., Boeing, Airbus guidelines)
- R&D Publications (accredited aviation labs, sustainability orgs)
- In-Flight Surveys: Real-time digital questionnaires.
- Post-Flight Apps: Gathering user feedback on seat comfort, IFE, service.
- Data Analytics: Trends to refine cabin features, service flows.
- Ambient Temperature/Humidity: Targeting ideal comfort ranges.
- Noise & Lighting: Coordinated solutions for calmer environment.
- Reduced Vibration: Structural damping in seat tracks/floor panels.
- IFE Profiles: Passengers can log in for personalized content.
- Dynamic Seat Settings: Memory positions, multi-language UIs.
- Biometric Options: Faster seat identification, auto-preferences.
- Hypersonic/Urban Air Mobility Interiors: Concepts for next-gen flight.
- Wearable Cockpit/Cabin Integration: Extended reality for crew ops.
- Geo-Location Based Services: Tailoring content/travel info to route segments.
Description: A schematic illustrating various cabin zones (Economy, Business, First Class, Crew Rest Areas) with modular design elements and accessibility features.
Key Highlights:
- Universal Accessibility Design for PRM (Persons with Reduced Mobility).
- Biophilic Zones integrating greenery and natural light elements.
- Sustainable Materials denoted in seating and flooring areas.
Description:
- Economy Class Seating Area: Configured for maximum capacity and ergonomic design.
- Business Class Seating Area: Offers enhanced space and privacy for long-haul comfort.
- First Class Seating Area: Luxurious accommodations with state-of-the-art amenities.
- Crew Rest Area: Dedicated zone for crew relaxation during extended operations.
- Lavatories and Accessible Facilities: Equipped with features for universal accessibility.
- Biophilic Zones: Integrates natural elements such as greenery and natural lighting.
- Sustainable Flooring and Materials: Denotes eco-friendly and recyclable materials used throughout the cabin.
- Universal Accessibility Design for PRM: Designed for seamless mobility and enhanced inclusivity.
Edit or View Diagram in Mermaid Chart Editor
This diagram belongs to Section 25.141 under Cabin Configuration and Accessibility Features. It visually emphasizes the integration of modular elements, sustainability practices, and accessibility improvements critical for modern aviation interiors.
- Passenger Demand Forecast: Adjusting seat layouts, services.
- Sustainability Metrics: Growing priority, impetus for greener cabins.
- AI Maturity: Tighter integration, better regulatory frameworks.
- Smart Textile Seats: Sensors embedded in fabrics.
- AI Voice Assistants: For cabin crew tasks, passenger queries.
- Zero-Emission Interiors: Materials that store or offset carbon.
Diagram Description:
This hierarchical diagram illustrates the organizational structure for cabin maintenance roles, emphasizing sustainability, AI integration, and general maintenance workflows.
-
Cabin Systems Manager:
- Oversees all cabin maintenance activities and retrofitting schedules.
-
Sustainability Engineers:
- Focus on eco-friendly certifications and materials compliance.
- Materials Specialist: Ensures sustainable and certified materials.
- Certifications Specialist: Handles environmental certifications and standards.
- Focus on eco-friendly certifications and materials compliance.
-
AI Integration Specialists:
- Develop and maintain predictive maintenance systems.
- AI Diagnostics Analyst: Performs system diagnostics using AI tools.
- Predictive Maintenance Operator: Implements AI-driven predictive maintenance tasks.
- Develop and maintain predictive maintenance systems.
-
Technicians:
- Conduct general maintenance and retrofitting work.
- General Maintenance Crew: Handles day-to-day repairs and upkeep.
- Retrofitting Specialist: Focuses on upgrading cabin systems to newer, eco-friendly standards.
- Conduct general maintenance and retrofitting work.
Hierarchical Diagram:
This structure ensures accountability, specialization, and integration of advanced technologies like AI and sustainability measures into cabin maintenance practices.
(New: Addresses recycling, upcycling, and sustainable supplier ecosystems.)
Description:
A lifecycle flowchart of cabin furnishing components illustrating key stages:
- Design Phase: Sustainable material selection.
- Operation Phase: Periodic maintenance with minimal environmental impact.
- End-of-Life Phase: Recycling and upcycling processes.
Interactive Diagram:
- Edit this diagram on MermaidChart
- Explore further lifecycle connections, adding phases or integrating additional metrics as needed.
- End-of-Life Strategies: Breaking down seats, panels into recyclable fractions.
- Documentation: Tracking components from manufacturing to disposal.
- Automation: Robotic disassembly lines for metal, plastic, composite separation.
- Refurbishment: Converting old seats/bins into new service.
- Secondary Uses: Donating or repurposing for training, lounge décor.
- Partnerships: Collabs with non-aviation industries needing robust materials.
- Assessment Criteria: Checking environmental certifications, ethical practices.
- Long-Term Contracts: Encouraging consistent supply of eco-friendly materials.
- Transparent Reporting: Lifecycle metrics shared between supplier and airline.
- Joint Ventures: Airlines, OEMs, recyclers co-develop specialized processes.
- Certification Incentives: Regulatory or industry recognition for sustainable loops.
- Redundant Power: Secondary bus lines ensuring essential cabin ops.
- Backup Control Panels: Crew can operate lighting/IFE in partial system failure.
- Failsafe Doors: Manual overrides for lav/crew rest compartments.
- Dual-Path Wiring: Minimizing single-point failures for seat controls, IFE.
- Auto-Failover: Switching to backup circuit if main fails.
- Structural Redundancies: Additional support for overhead bins, partitions.
- Fire Drills: Crew training for quick containment, coordinating with on-board sensors.
- Decompression: Automatic oxygen deployment, structural integrity checks.
- System Failures: Tiered escalation, fallback to manual or minimal automated modes.
(Focus on advanced data analytics, passenger comfort optimization, and crew assist.)
Description: A process map illustrating the integration of AI in cabin management:
- Passenger Data Input: AI personalizes cabin conditions, including temperature, lighting, and IFE (In-Flight Entertainment) preferences.
- Crew Assistive Features: AI generates real-time alerts for passenger well-being and operational recommendations.
- Feedback Loop: The system continuously refines itself using operational data for enhanced performance.
This workflow showcases the seamless interaction between passenger inputs, AI-driven personalization, and crew support systems, ensuring optimal cabin experiences.
- Preference Learning: AI tailors lighting, IFE suggestions, seat adjustments.
- Smart Cues: Nudging passengers to hydrate/stretch during ultra-long flights.
- Behavioral Insights: Minimizing negative interactions or crowding (e.g., lav queue times).
- Real-Time Alerts: Identifying potential medical events, seat malfunctions, supply shortages.
- Proactive Maintenance: Recommending repairs pre-flight if abnormal sensor data is flagged.
- Adaptive Workloads: Balancing tasks among crew members based on real-time metrics.
- Camera/Seat Sensors: Detect posture, facial expressions (with privacy safeguards).
- Feedback Loop: Auto seat or environment adjustment to reduce discomfort.
- Machine Learning: Continual improvement from aggregated flight data.
- Data Privacy: Ensuring passenger data (images, preferences) is handled lawfully.
- Algorithmic Bias: Avoiding discriminatory patterns in seat upgrade suggestions or service response.
- Transparent Governance: Clear disclaimers on AI usage, passenger consent where needed.
- Nanotech Polymers: Repair minor scratches.
- Adaptive Surface: Changes texture/firmness based on environment or user input.
- Honeycomb Partitioning: Maximizing space/strength ratio.
- Organic Flow Aisles: Reducing passenger bottlenecks.
- Living Walls: If feasible, microgreens or decorative plants near galley/entrances.
- Multi-Sensory: Light, sound, mild scents reminiscent of nature.
- Conductive Fibers: Temperature regulation, occupant detection.
- Adaptive Color: Mood-based seat color shifts or airline branding opportunities.
Description: A visual diagram demonstrating solutions for emergency accessibility in the cabin:
- PRM Pathways: Features wide aisles and wheelchair transfer seats to facilitate swift evacuation.
- Haptic Feedback Systems: Vibration alerts and localized emergency directions for visually impaired passengers.
- Enhanced Lavatory Accessibility: Includes lever-style handles, increased maneuvering space, and emergency assist call buttons.
This diagram highlights the commitment to inclusivity and safety during emergency scenarios, ensuring all passengers, including those with reduced mobility, have effective evacuation options.
- Wide Aisles, Minimal Obstructions: Ensuring quick PRM egress.
- Visual/Haptic Alerts: Tactile cues on floor or seat edges.
- Securing Mobility Devices: Special anchors for wheelchairs in flight.
- Crew Training: Assisting PRM passengers with harnesses or seat transfers.
- Neurodiverse Considerations: Minimizing overwhelming stimuli (lighting, noise).
- Dietary Accommodations: Transparent labeling, reduced allergen cross-contact.
- Powered Stair Climbers: Possibly integrated into seats or aisles.
- Collapsible Rescue Chairs: Quickly deployed, easy to maneuver in tight corridors.
Note on Cross-References
- ATA 24: Align power management for IFE/connectivity with advanced cabin systems.
- ATA 26: Fire suppression tie-ins for lavatories and galleys.
- Regulatory Validation: Ongoing reference checks to ensure compliance with updated FAA/EASA guidelines.
-
Illustrate Complex Topics:
Diagrams/flowcharts for cargo restraint, cybersecurity workflows, AI-driven cabin management, etc. -
Validate Regulatory Sections:
Cross-check FAR/CS updates, EASA bulletins, ICAO standards, ISO/SAE guidelines. -
Implementation Guidance:
Provide annexes or white papers detailing retrofit strategies, advanced accessibility, AI system integration, and circular economy initiatives. -
Global Trends:
Emphasize biophilic design, green engineering solutions, modular cabin architectures, and sustainable supply chains in 25.140 Future Trends and Innovations.
By integrating these sections and references, ATA 25 becomes technically robust and forward-looking, supporting the GAIA AIR – Ampel360XWLRGA Aircraft’s goal of delivering sustainable, secure, and innovative cabin solutions for modern aviation.
